Late last month I received my second Arduino, which took a bit longer than usual to arrive, and when it did, it came directly from China in a small package. There was not the usual colorful little box and package of stickers, which made me suspicious.
Sure enough, looking more closely revealed that I have one of the fake arduino boards.

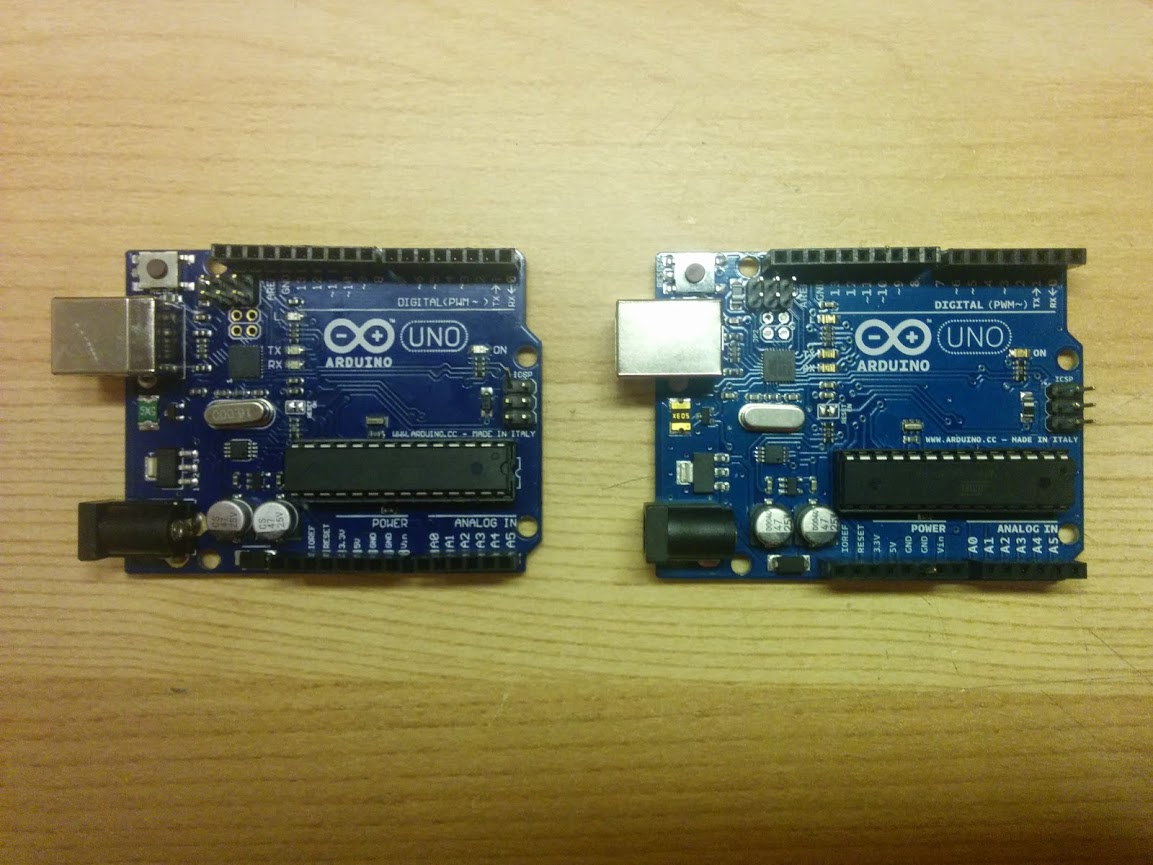

Here they are side by side:
Left: Fake, Right: Authentic
Since Arduino is an open source board design it stands to reason that there would be some similar boards designed, or derivatives that are Arduino-compatibles, but they shouldn’t try to attempt to pass themselves off as the original and definitely not infringe on the trademark.
Since I have a fake, I thought it would be fun to note what I could spot as differences before attempting to return it (don’t want to encourage this sort of behavior). NOTE that the Amazon ad from which I purchased it said it was the OFFICIAL one but several commenters noted they received fakes as well. So be careful when ordering!

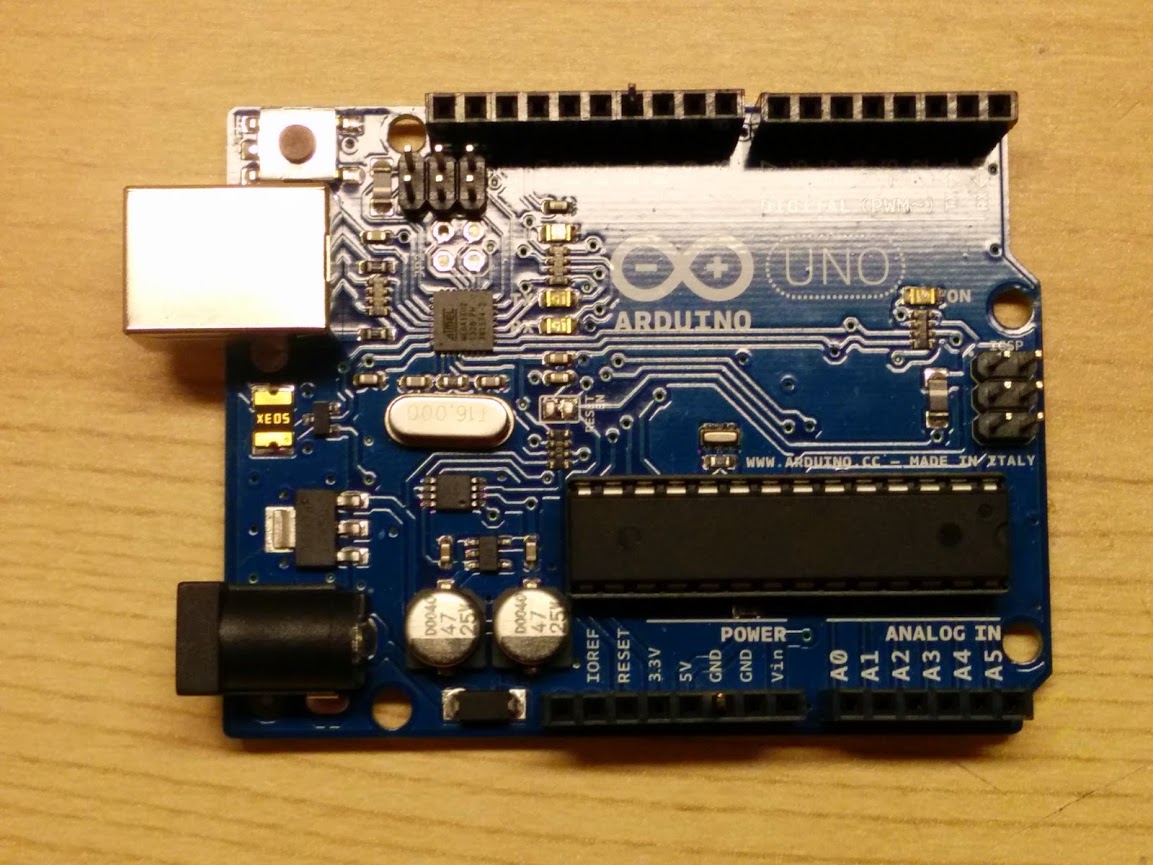

Definitely noticed the color differences off the bat. But on closer inspection also could see also other differences:

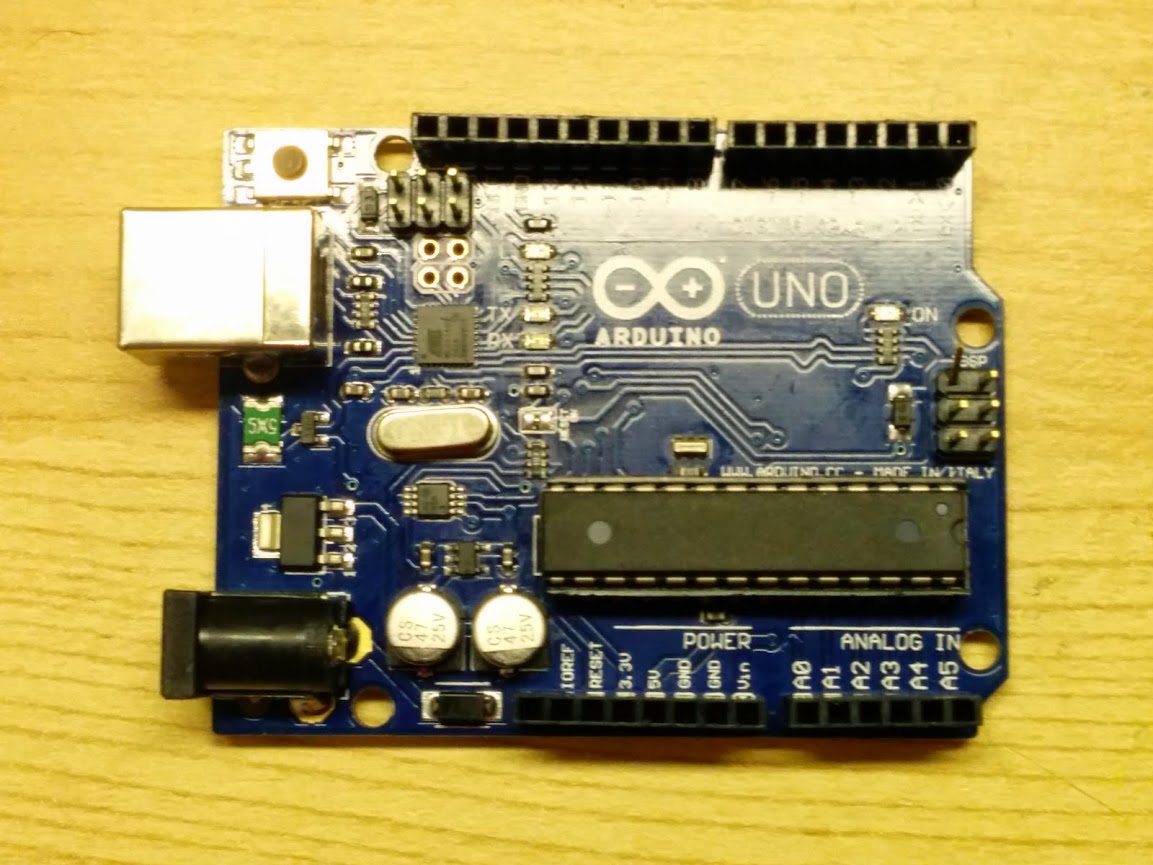

Note the green 501k resistor on the left (fake) under the USB port. Arduino has their own 501k resistor custom made to stand out (right).
Generally, the soldering job on the fake was worse quality. Note the crystal oscillator (oblong silver thing left of center) is not soldered in straight on the fake. Also:

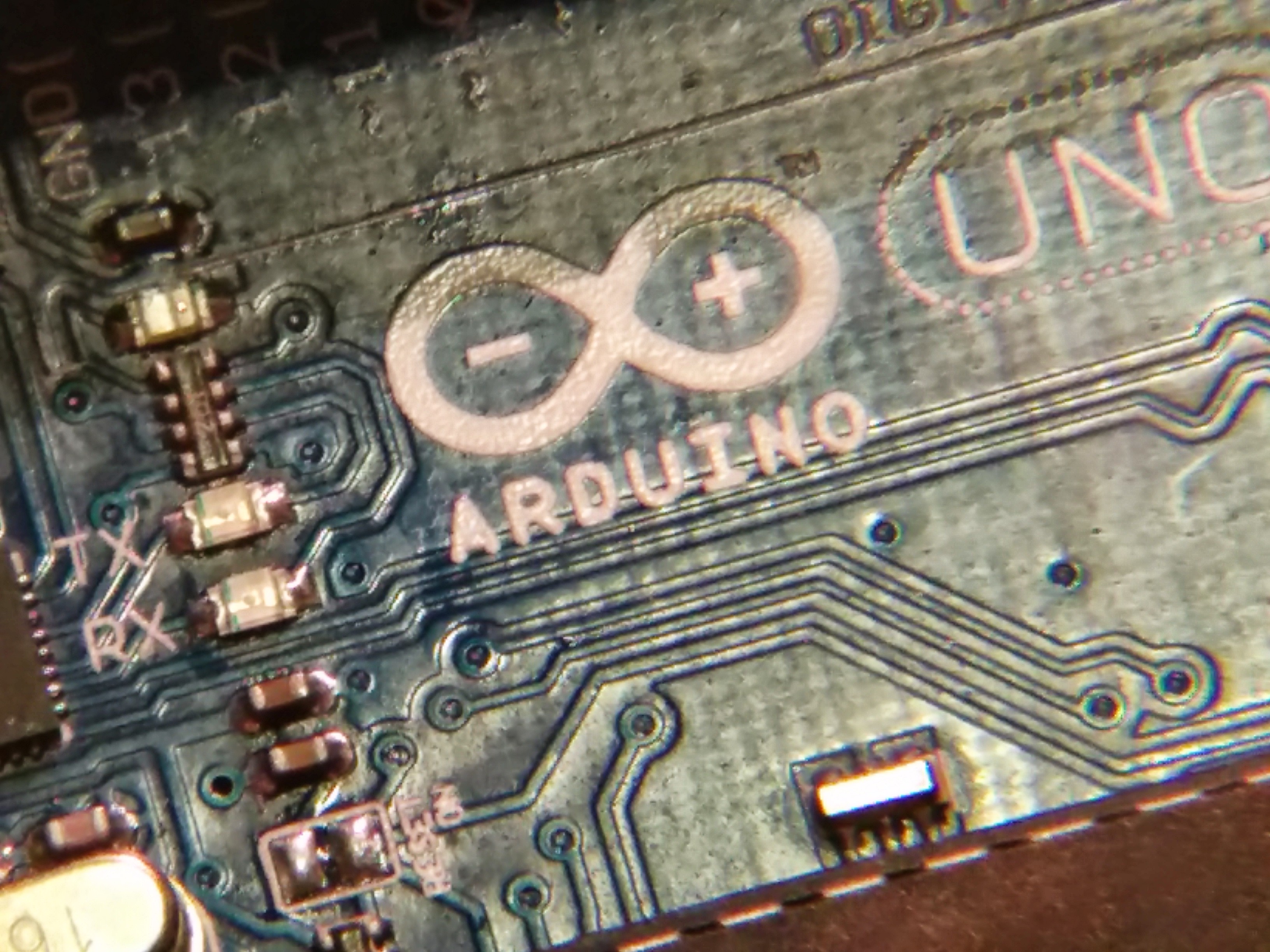

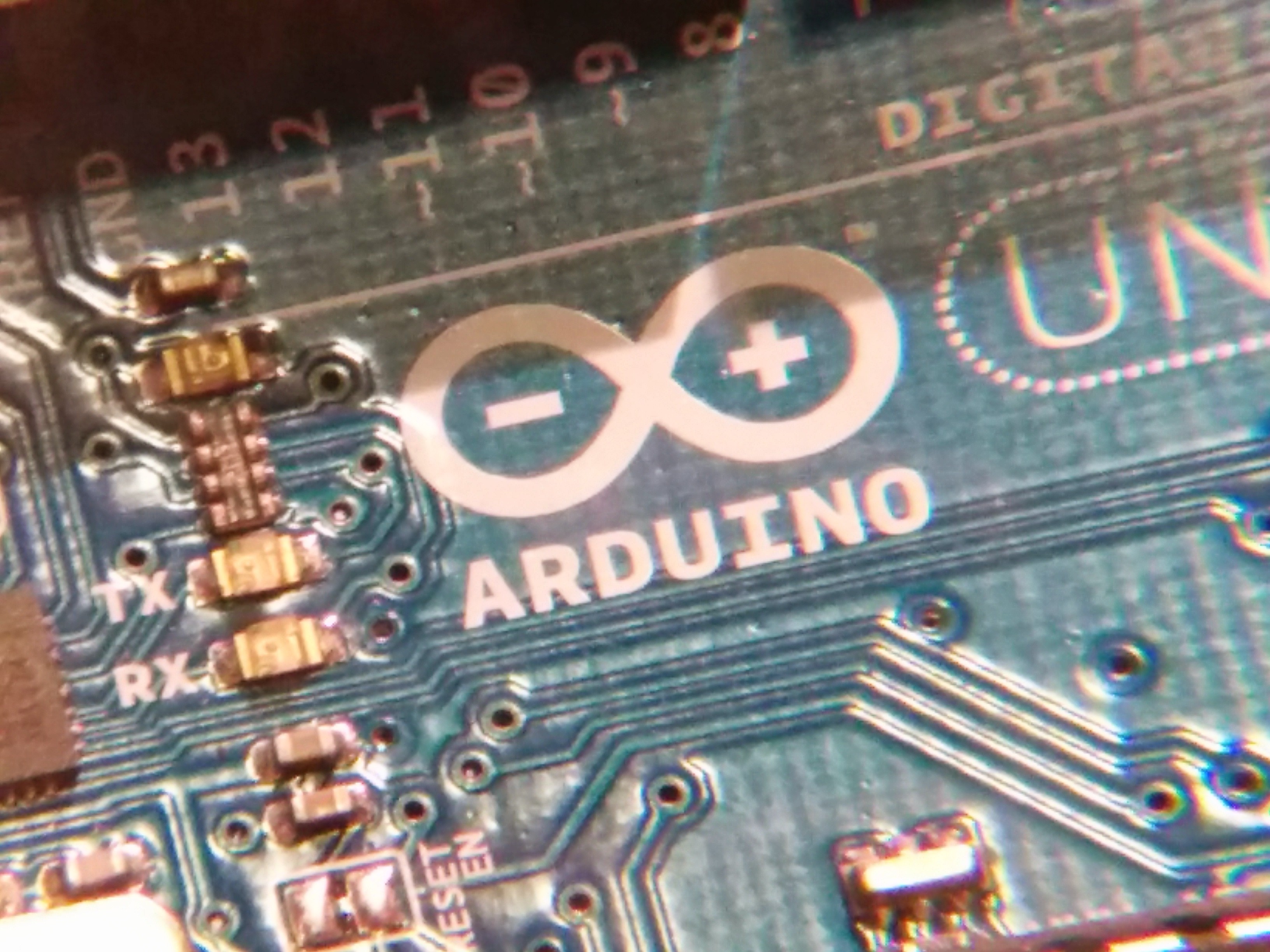

Note the silk-screening is better on the real one (right) vs the fake (left). The hole in the “A” is missing on the fake. Generally, through holes are not as well done on the fake as well.

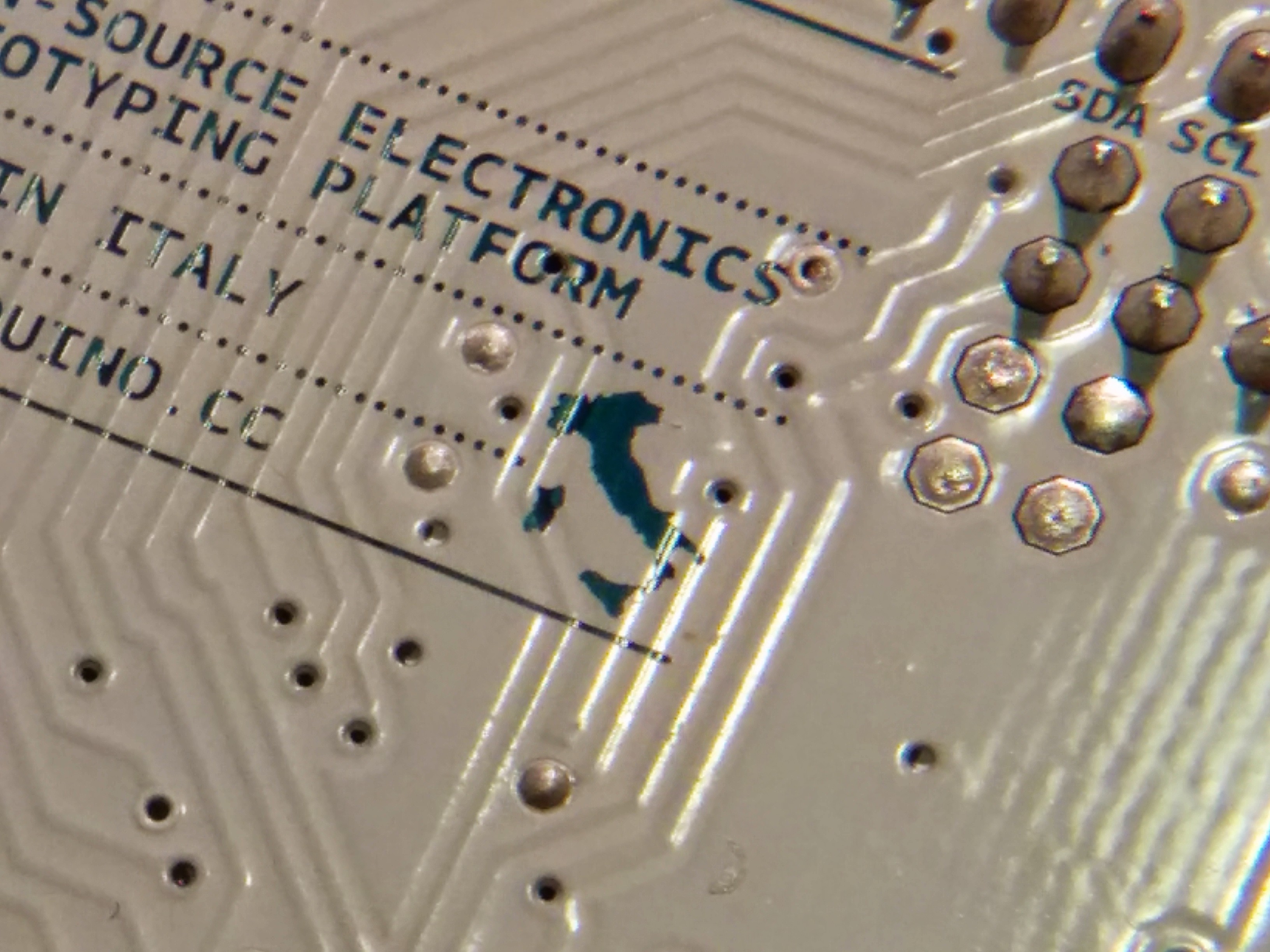

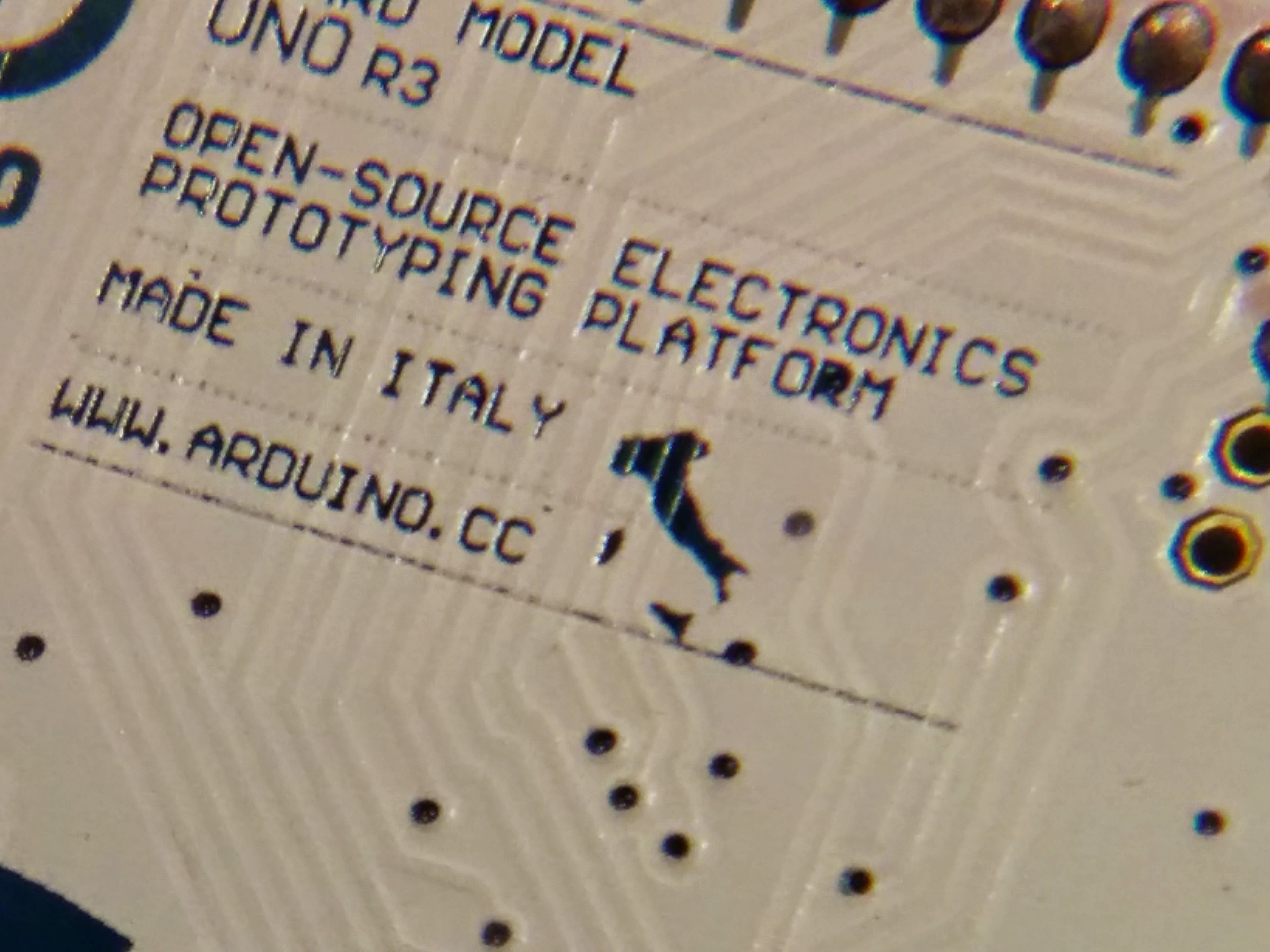

The boot of Italy is not as well formed on the fake (left), although at first glance it seemed ok. Notice the distance between the tip of the boot and the island of Sicily.
One might say “what does it matter?” Well, besides the fact that it encourages illegal trademark infringment, you might not get as high quality a board, that may break over time.

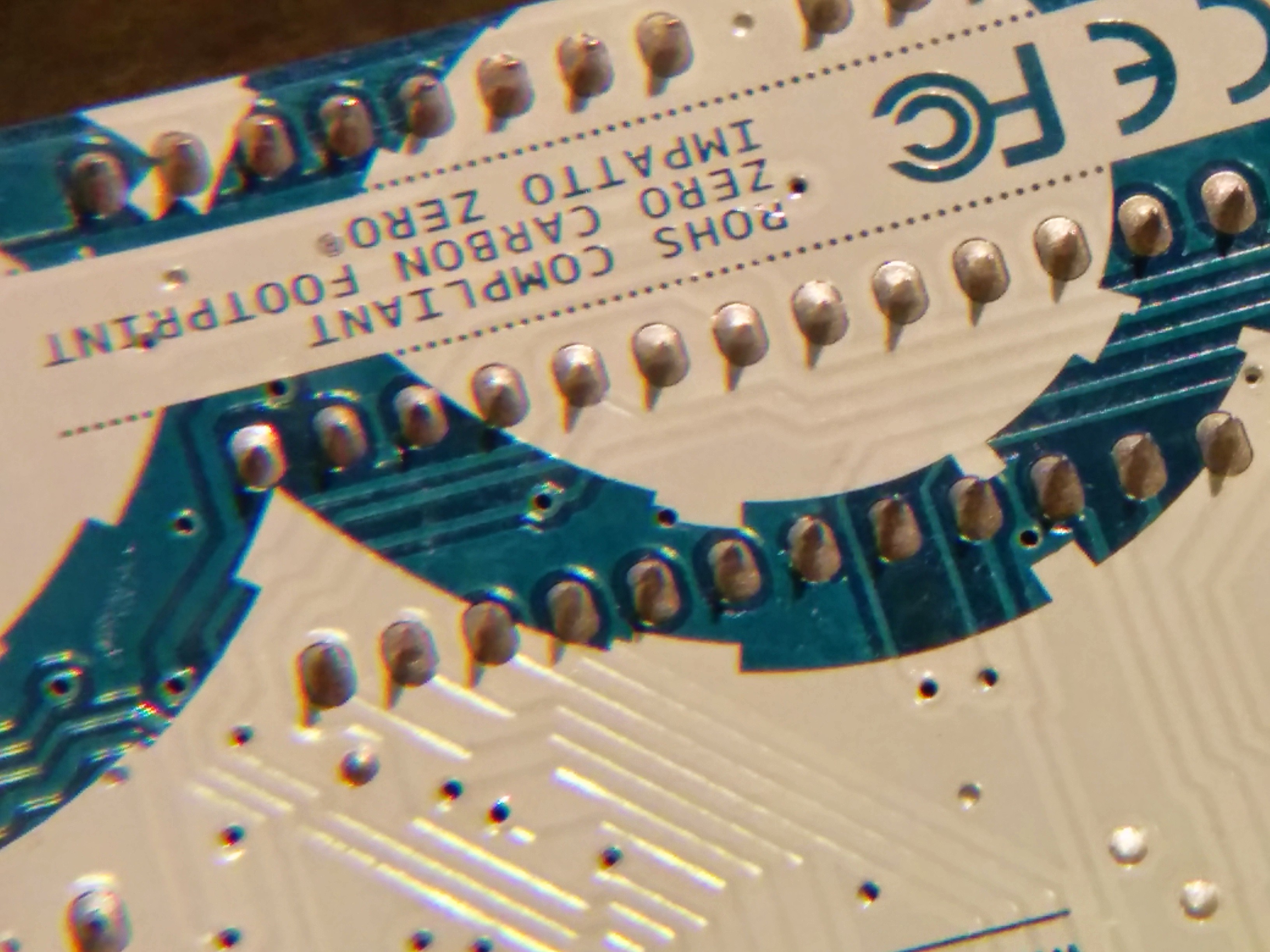

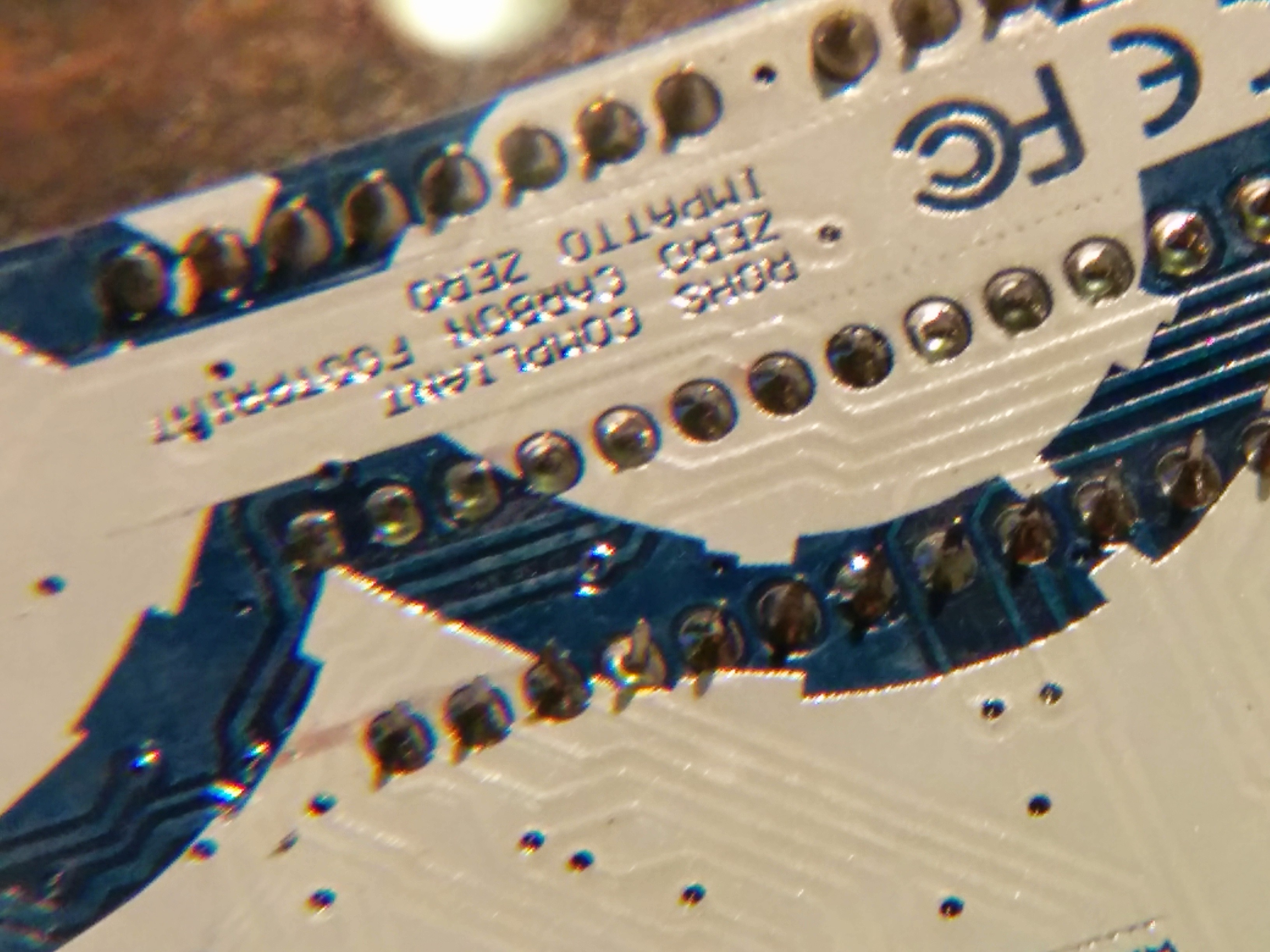

Notice here the poor soldering job done on the fake (left). The 4th pin from the left on the bottom isn’t even soldered completely! This is sad also because there are purple marks on the board indicating someone had to have inspected it at some point! Who knows what kinds of problems you would have to debug with the fake board!

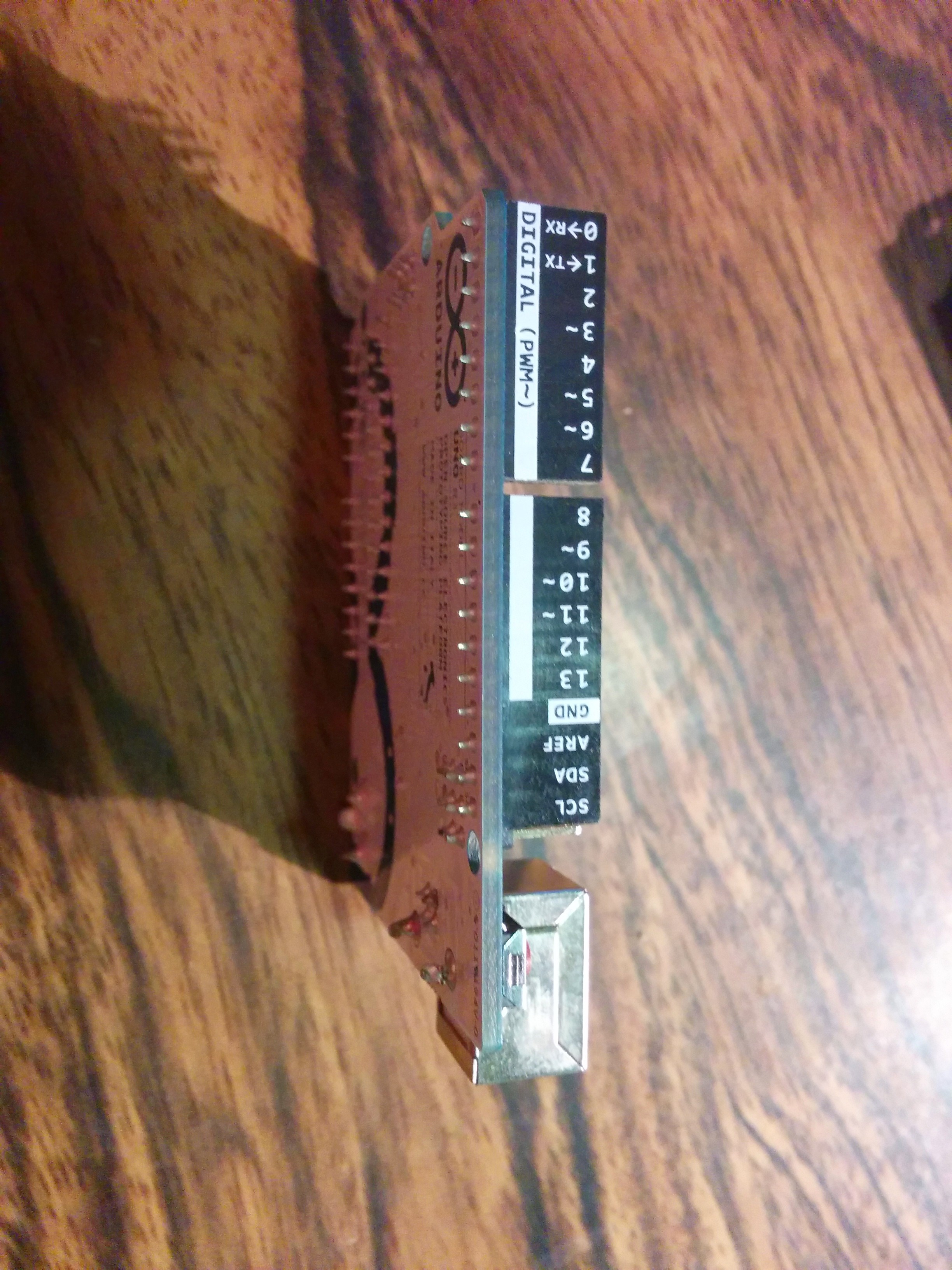

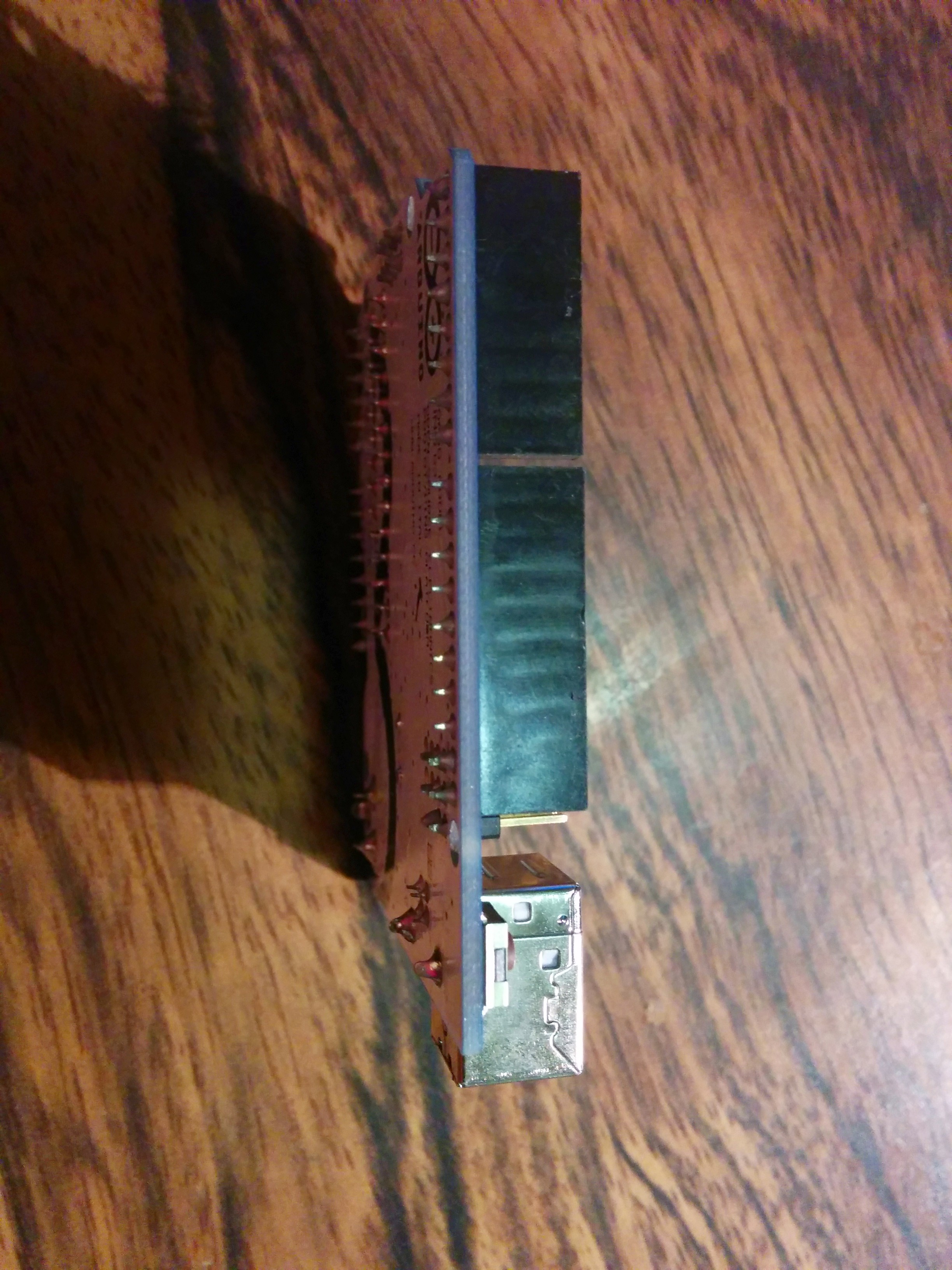

A couple of big indicators, 1, no silkscreening on the pin headers:

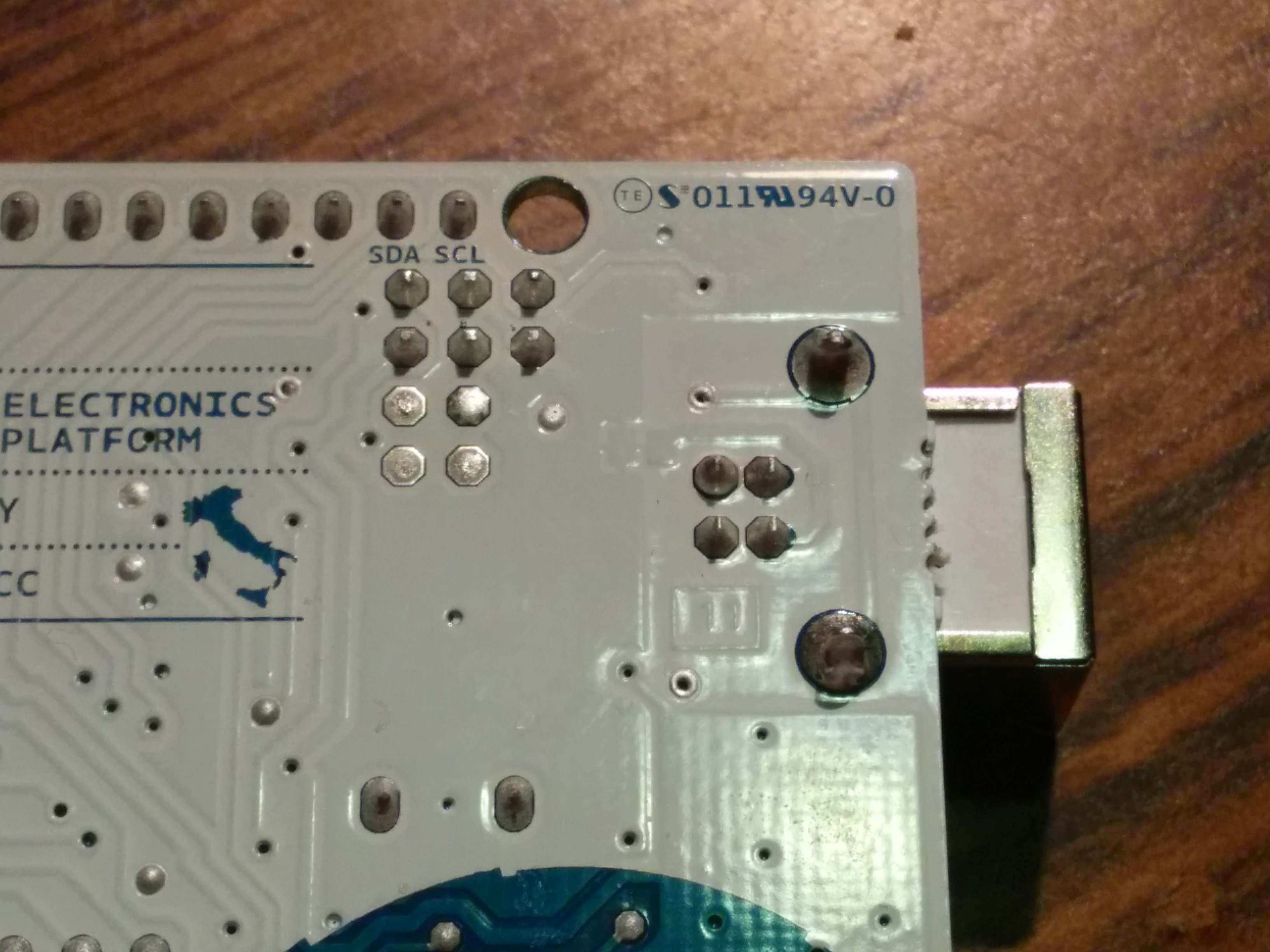

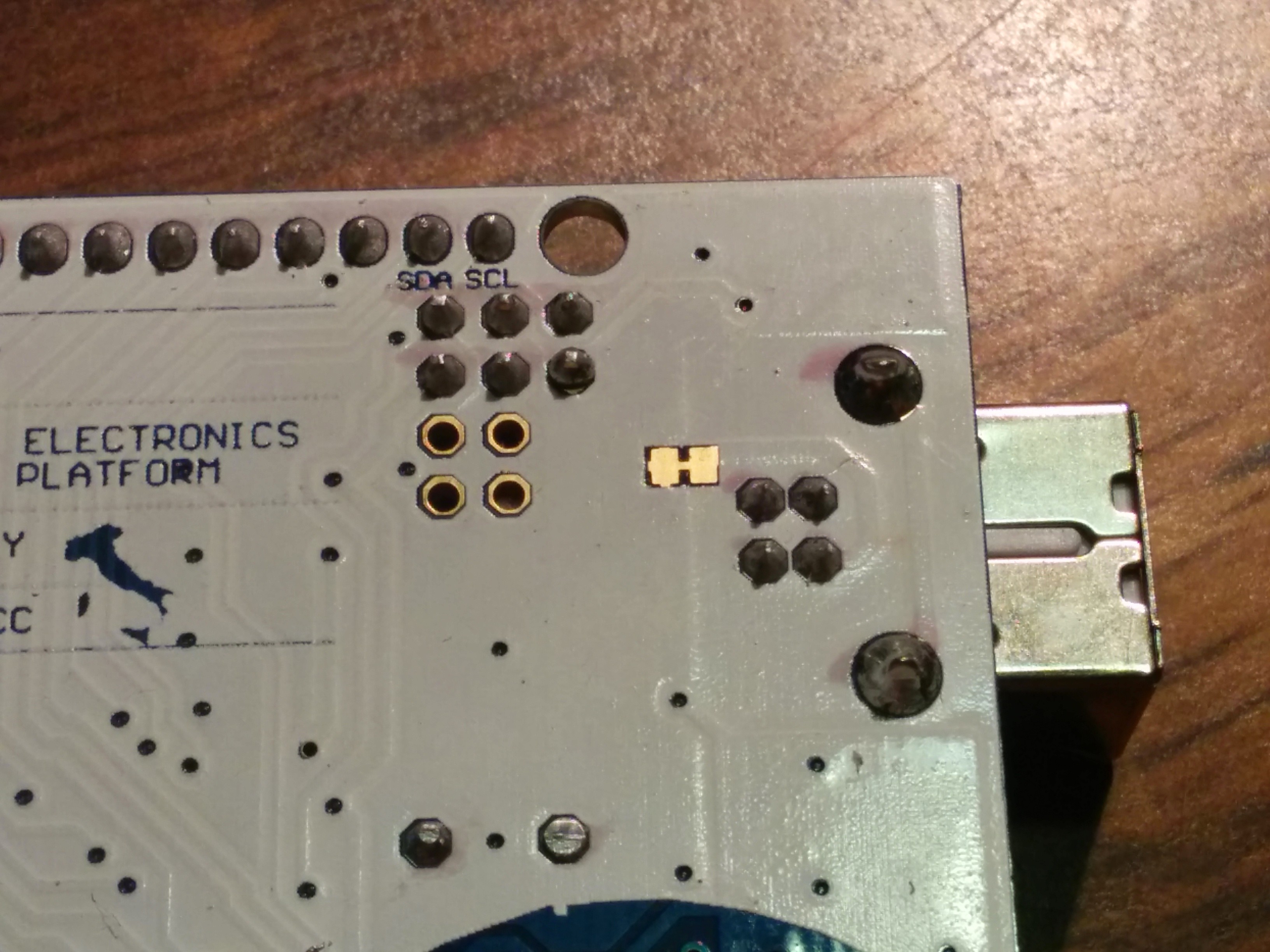

and the biggest thing of all, no board number on the corner of the board!
I’ve given a 1-star review of the vendor on Amazon and will be reporting them for trademark infringement per the recommendation on the Arduino official page.
Hopefully I’ll get my money back, stay tuned.
In the future need to check the list of official vendors here, I guess imitation is a form of flattery, but in my mind it’s just an attempt to grab a piece of the DIY Arduino market.
At least with this one it was easy to tell, I’m sure I have other undiscovered fakes in-house.

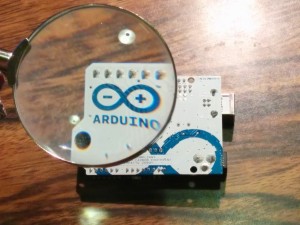

Look carefully!
UPDATE
Been in contact with the Arduino Trademark people after reporting the seller to them. Sent them some detailed pictures, shown here: http://goo.gl/gTY1pj
Also, after some back and forth with the seller they have refunded my money ($15 which should have been a hint as to the fact it was counterfeit), without asking for the board back. Won’t use it. It will serve as a reminder to be careful ordering these and other boards in the future.
After a bit of a scramble late last week, we were able to get v1.0 of the Makerspace sign up at my sons’ middle school Friday morning!
This is the conclusion to the project I mentioned before (Music and Lights), where an Arduino was used to drive a small speaker and some LEDs. My initial code was done to play Imperial March (from Star Wars) and Super Mario Bros Overworld Theme. But the kids would hopefully take it from there and make it their own.
It’s Time to Play the Music…
One of the kids with his dad’s help was able to extend my code to include many more measures of Jingle Bell Rock. The Arduino code, written in C, was written in a way to make it easy to play any song (single tone at a time). For example, the first line of the tune:
Looks like this in the code:
// Jingle Bell Rock
int bpm = 120;
int song[100][2] = {
{R,Q},{C6,E},{AA5,E},{B5,E},{AA5,E},{G5,Q},{C6,Q},{Bb5,Q},{B5,Q},{R,Q},
{C6,E},{C6,E},{C6,Q},{B5,E},{B5,E},{B5,Q},
Basically it’s a 2-dimensional array where the entire song is in braces { } where each ‘note’ is a pair of values indicating the note/tone and duration. Given that it’s single tone music, generally you want to hit only the highest note for each beat to play out the tune.
There are 8.5 octaves of notes available, starting with the lowest at C0 going up through C1, C2, … C7, to the highest at C8.
All 12 pitches of the chromatic scale are represented as follows:
Where x represents the octave. NOTE: Lowest note is C0, highest is Eb8.
Note also that the A is represented here by ‘AA’ since A0, A1, etc. are reserved terms in Arduino code-land (represent names of external pins).
A rest is represented by an R (no sound).
Note durations are represented with the following symbols:
W = whole note
H = half note
Q = quarter note
E = Eighth note
S = Sixteenth
You can represent any other fractions of time simply by writing as an equation in the code, e.g. {C6, Q+E}.
It’s Time to Light the Lights…
Now that we had a tune, we had to decide what our light show would look like. We had wanted to use Christmas lights controlled by the Arduino. I decided for simplicity to use an off the shelf relay board (SunFounder 2 channel 5V relay shield) that could be driven by the 5V Digital I/Os.
Generally you can use a relay to help you control something high-power or high-voltage like 120V AC electricity with low-voltage, low-power electronics. Relays have been used in everything from cars to sprinkler systems, having started out from the telegraph.
We decided in the end for simplicity to use 2 sets of lights alternatively blinking for our ‘light show’. This made my job that much easier.

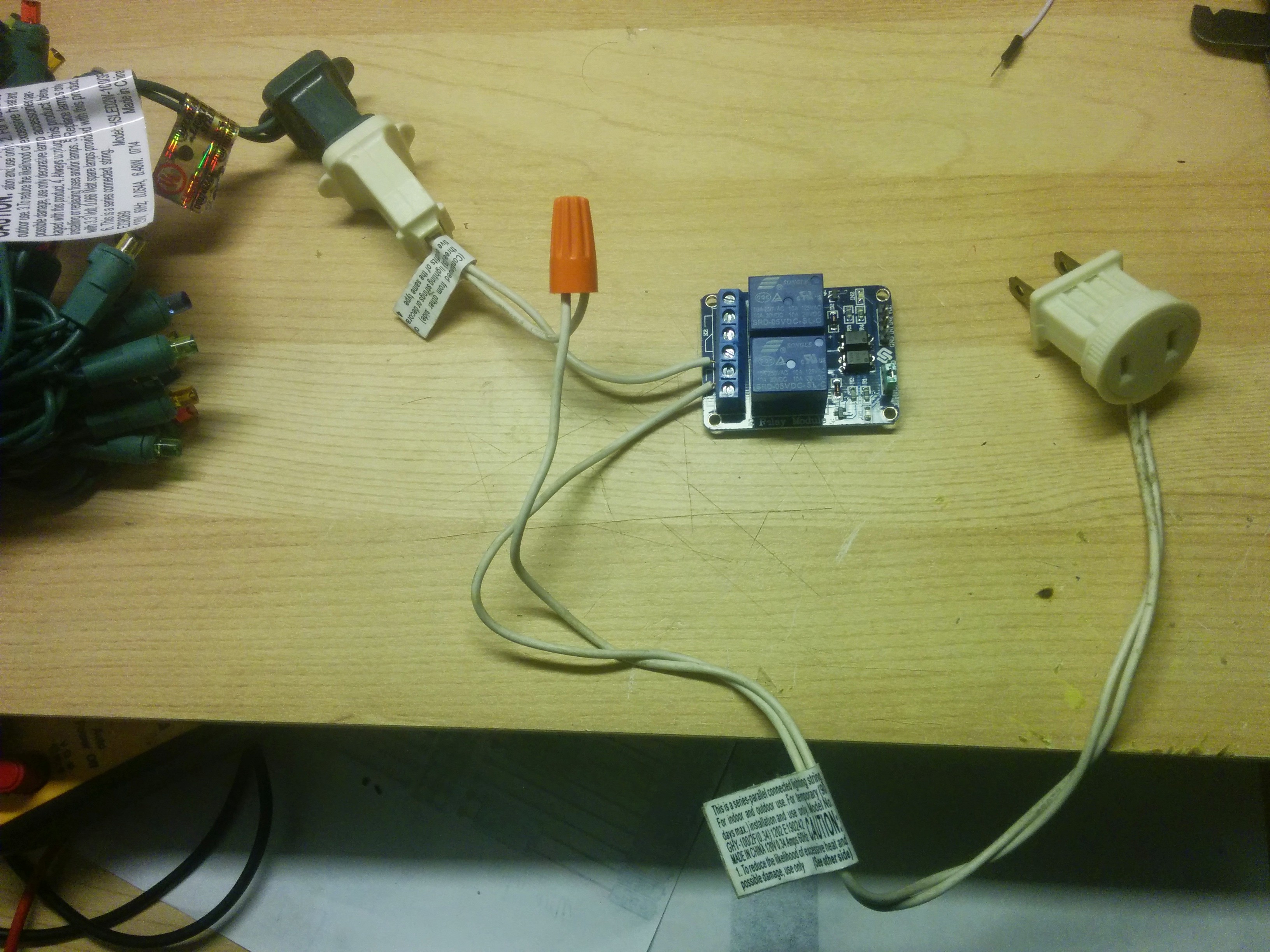

Hijacking the plugs off an old strand of lights, where one of the wires goes ‘straight through’ connected via a twist-on wire connector and the other wire goes through the relay, here is the setup for controlling 1 set of lights:

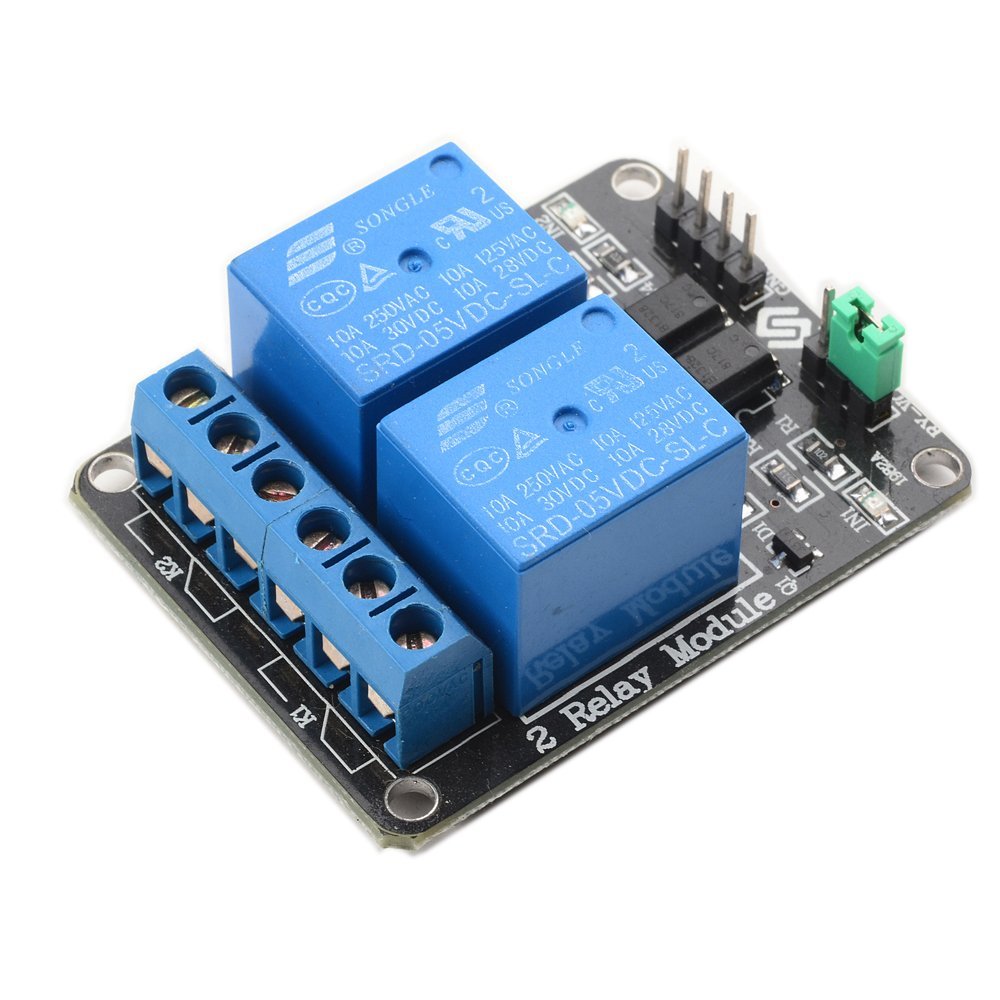

Relay set to control one string of lights.

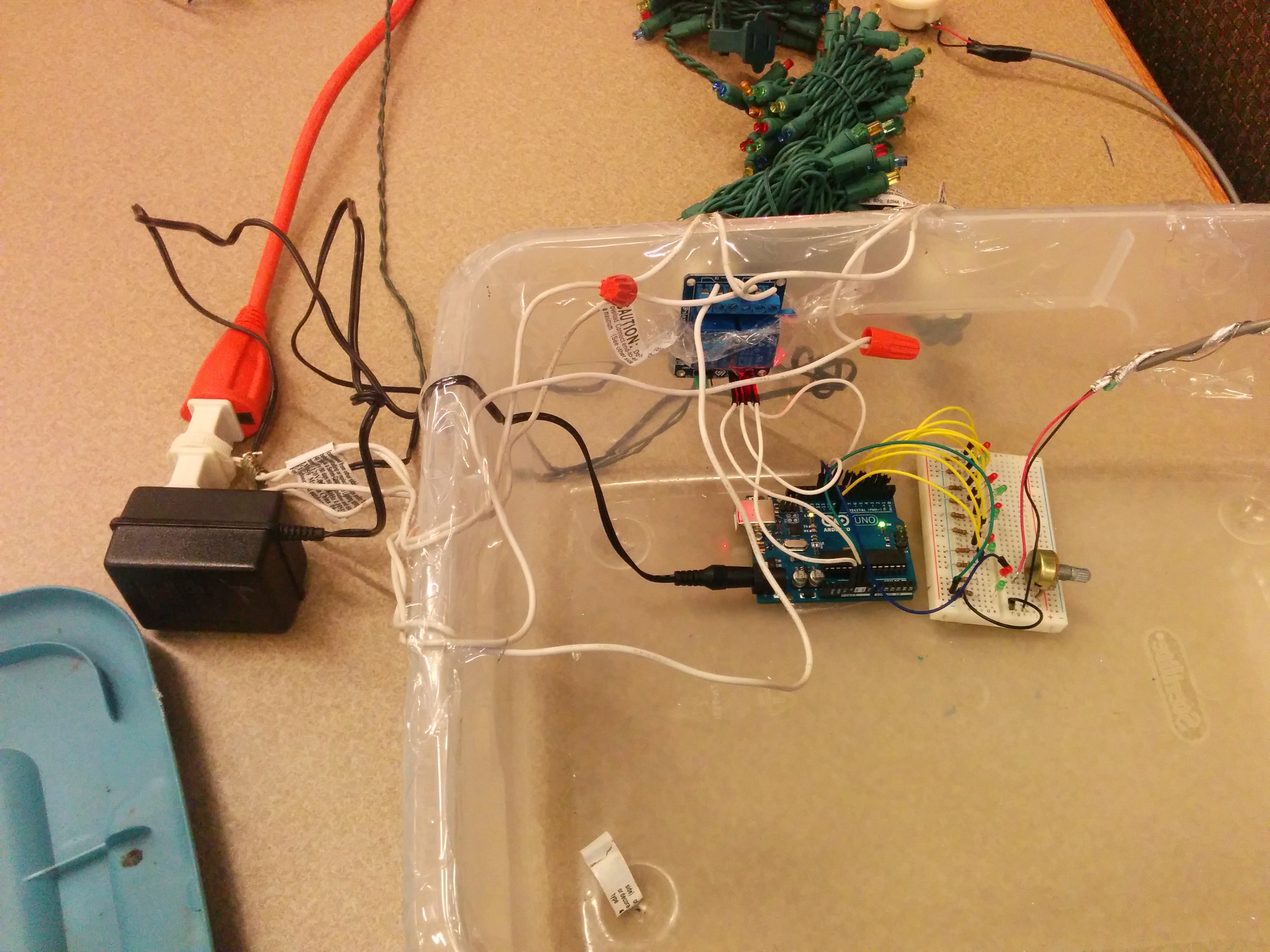

Connecting up the Arduino to the relay involves connecting the 5V outputs previously used to drive LEDs now to drive the input lines on the relay board associated with the light strand we wanted to light. Due to inverted logic used by the relays, instead of driving a HIGH like we did before with LEDs, the relays now would need to be driven LOW in order to ‘activate’ (connect the lights).
(Yes, my engineer friends will tell me that if I had connected to the ‘normally closed’ ends of the relay then I probably could have left the drive logic alone, but as a Test Engineer at Freescale who has driven relays in this way for 10+ years, old habits die hard. Besides for safety reasons just felt that lights should be normally off when the system wasn’t powered).
With the kids we worked out roughly which notes we wanted to light which lights.

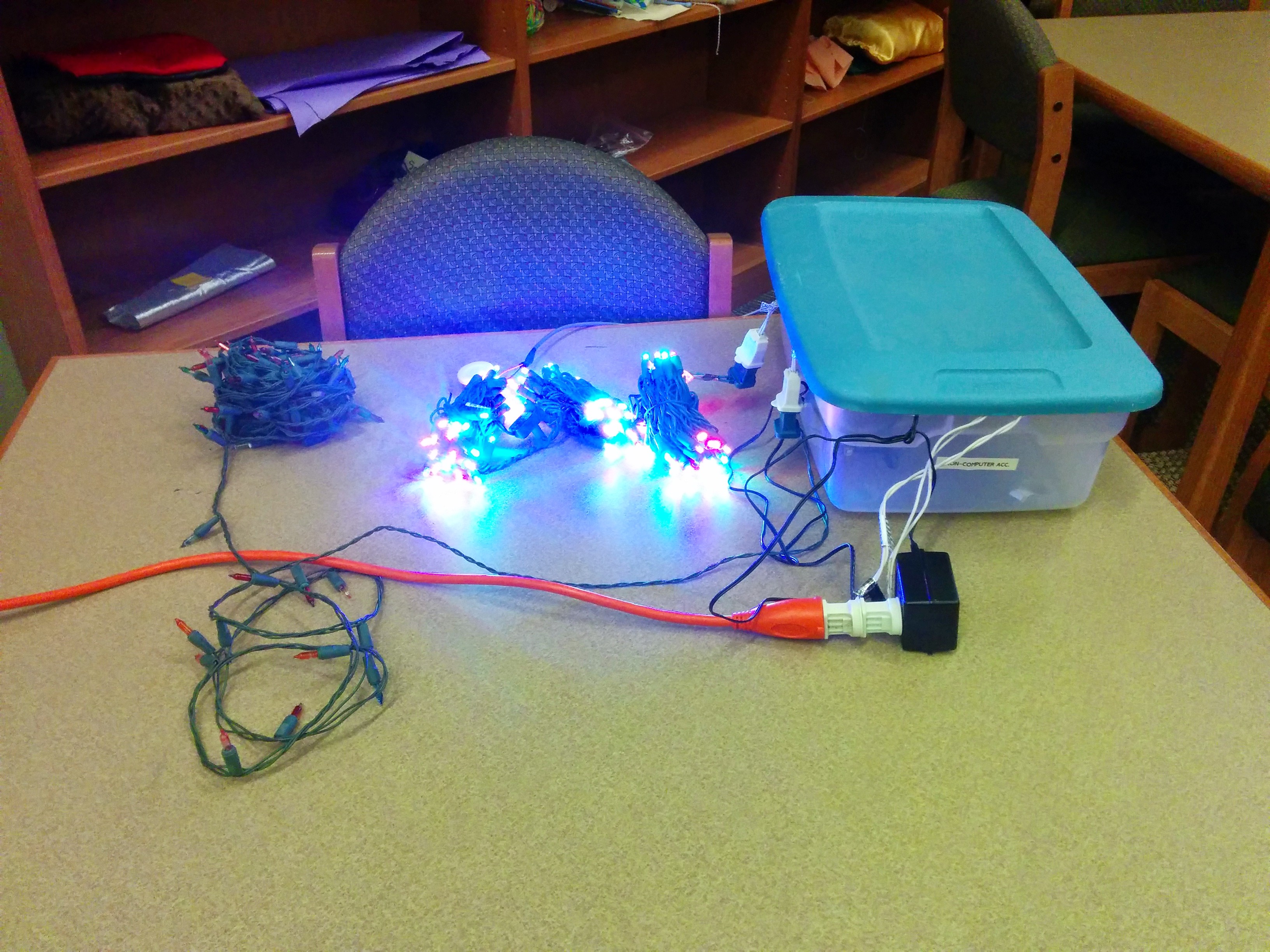

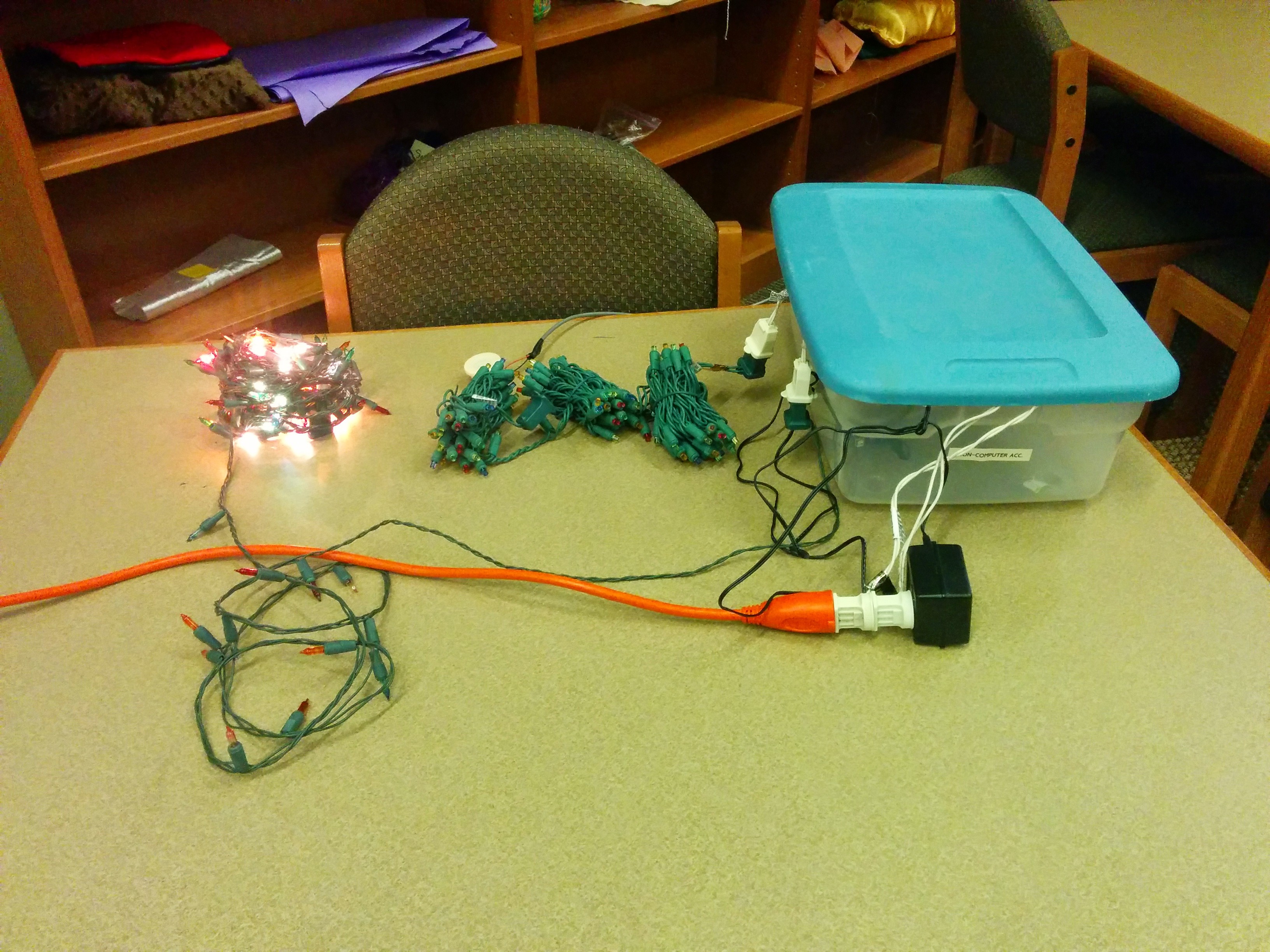

Then the kids made a couple of signs, one of which would house the Christmas lights and our holiday message.
It’s Time to Raise the Curtain…
Will share the code and hookup in a future post (stay tuned for the link).
The cool part is that hopefully with this setup we’ll be able to get the kids a bit more hands-on with the code in the spring! Wonder what song they’ll think up to do next…
Statler: That was a real wire act. Waldorf: On this show, everything’s a wire act. Statler: Why’s that? Waldorf: Because, you keep asking “Wire they doing it?”
This is a little project I took on recently for my son’s afterschool Makerspace. The goal ultimately was to do something with Christmas lights, basically having an Arduino or something drive different strings of lights in time to some music. I would serve as tech consultant but let the kids drive the creative side, with some tech learning on the way.
So basically the project idea started from this : http://www.instructables.com/id/Arduino-Christmas-Light-Controller/. Got the relays, got the Arduino. I took this code and hooked it up to 8 LEDs via Arduino just to see if it worked. Got it working. The problem was that getting the music in sync with the lights requires you hitting play at the right moment. Also, doing a new song would require the kids to play a song over and over and measuring the time delays to update the program. Not exactly fun.
After some code update to make it easier for the kids to do their own songs, here we go.
Basically took a piezo speaker out of an old phone handset, hooked it up to pin 11 of the Arduino via a switch (for easy turn on/off) and a potentiometer (for volume control). I then added some code where you can assign one of the 8 LEDs to a particular note of the song, when it plays the note, it lights the LED.
Here is what I have so far:
Showed this to the kids on Thursday and they seemed to all enjoy it! They have started coding up Jingle Bell Rock note by note. Will keep you all posted on the progress!

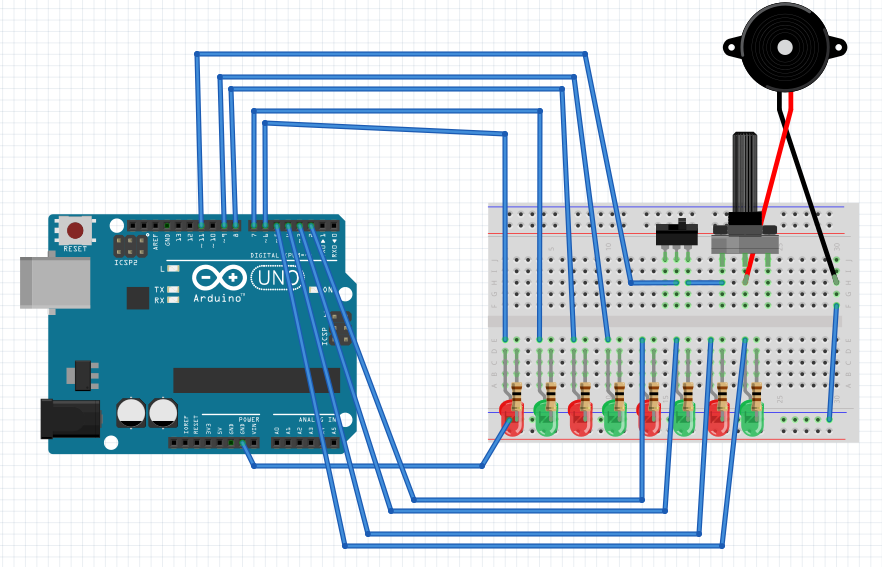

Hookup and code is below. Enjoy!
And the code:
// From: http://www.instructables.com/id/How-to-easily-play-music-with-buzzer-on-arduino-Th/
// NB: ALL NOTES DEFINED WITH STANDARD ENGLISH NAMES, EXCEPT FOR "A"
// WHICH HERE IS CALLED "AA" BECAUSE A0,A1...ARE THE ANALOG PINS ON ARDUINO.
// (Ab IS CALLED Ab AND NOT AAb)
#define C0 16.35
#define Db0 17.32
#define D0 18.35
#define Eb0 19.45
#define E0 20.60
#define F0 21.83
#define Gb0 23.12
#define G0 24.50
#define Ab0 25.96
#define AA0 27.50
#define Bb0 29.14
#define B0 30.87
#define C1 32.70
#define Db1 34.65
#define D1 36.71
#define Eb1 38.89
#define E1 41.20
#define F1 43.65
#define Gb1 46.25
#define G1 49.00
#define Ab1 51.91
#define AA1 55.00
#define Bb1 58.27
#define B1 61.74
#define C2 65.41
#define Db2 69.30
#define D2 73.42
#define Eb2 77.78
#define E2 82.41
#define F2 87.31
#define Gb2 92.50
#define G2 98.00
#define Ab2 103.83
#define AA2 110.00
#define Bb2 116.54
#define B2 123.47
#define C3 130.81
#define Db3 138.59
#define D3 146.83
#define Eb3 155.56
#define E3 164.81
#define F3 174.61
#define Gb3 185.00
#define G3 196.00
#define Ab3 207.65
#define AA3 220.00
#define Bb3 233.08
#define B3 246.94
#define C4 261.63
#define Db4 277.18
#define D4 293.66
#define Eb4 311.13
#define E4 329.63
#define F4 349.23
#define Gb4 369.99
#define G4 392.00
#define Ab4 415.30
#define AA4 440.00
#define Bb4 466.16
#define B4 493.88
#define C5 523.25
#define Db5 554.37
#define D5 587.33
#define Eb5 622.25
#define E5 659.26
#define F5 698.46
#define Gb5 739.99
#define G5 783.99
#define Ab5 830.61
#define AA5 880.00
#define Bb5 932.33
#define B5 987.77
#define C6 1046.50
#define Db6 1108.73
#define D6 1174.66
#define Eb6 1244.51
#define E6 1318.51
#define F6 1396.91
#define Gb6 1479.98
#define G6 1567.98
#define Ab6 1661.22
#define AA6 1760.00
#define Bb6 1864.66
#define B6 1975.53
#define C7 2093.00
#define Db7 2217.46
#define D7 2349.32
#define Eb7 2489.02
#define E7 2637.02
#define F7 2793.83
#define Gb7 2959.96
#define G7 3135.96
#define Ab7 3322.44
#define AA7 3520.01
#define Bb7 3729.31
#define B7 3951.07
#define C8 4186.01
#define Db8 4434.92
#define D8 4698.64
#define Eb8 4978.03
#define R 0 // rest
// DURATION OF THE NOTES
#define H 2*Q //half 2/4
#define Q 60000/bpm //quarter 1/4 // Here assumes 4/4 time signature!
#define E Q/2 //eighth 1/8
#define S Q/4 // sixteenth 1/16
#define W 4*Q // whole 4/4
#define EE E*4/3 // slightly slow E or a quick Q
int speaker = 11; // WRITE HERE WHICH PIN THE SPEAKER IS CONNECTED TO
int leds[] = {6, 7, 8, 9, 2, 3, 4, 5}; // WRITE HERE WHICH PIN THE LEDS ARE CONNECTED TO: 1, 2, 3, 4, 5 ....
int num_leds = 8; // WRITE HERE TOTAL NUMBER OF LEDS CONNECTED
// The Imperial March
/*
int bpm = 120; // WRITE HERE THE TEMPO OF THE SONG (BPM)
int song[100][2] = { // WRITE HERE THE SONG IN FORMAT {{NOTE, DURATION}, {NOTE, DURATION}, ... {NOTE, DURATION}} MAX NOTES = 100
{AA3,Q},{AA3,Q},{AA3,Q},{F3,E+S},{C4,S},{AA3,Q},{F3,E+S},{C4,S},{AA3,H},
{E4,Q},{E4,Q},{E4,Q},{F4,E+S},{C4,S},{Ab3,Q},{F3,E+S},{C4,S},{AA3,H},
{AA4,Q},{AA3,E+S},{AA3,S},{AA4,Q},{Ab4,E+S},{G4,S},
{Gb4,S},{E4,S},{F4,E},{R,E},{Bb3,E},{Eb4,Q},{D4,E+S},{Db4,S},
{C4,S},{B3,S},{C4,E},{R,E},{F3,E},{Ab3,Q},{F3,E+S},{AA3,S},
{C4,Q},{AA3,E+S},{C4,S},{E4,H},{AA4,Q},{AA3,E+S},{AA3,S},{AA4,Q},{Ab4,E+S},{G4,S},
{Gb4,S},{E4,S},{F4,E},{R,E},{Bb3,E},{Eb4,Q},{D4,E+S},{Db4,S},
{C4,S},{B3,S},{C4,E},{R,E},{F3,E},{Ab3,Q},{F3,E+S},{C4,S},
{AA3,Q},{F3,E+S},{C4,S},{AA3,H}
};
int num_notes = 70; // WRITE HERE HOW MANY NOTES IN THE SONG!
int led_notes[] = {Ab3,AA3,F3,C4,E4,F4,Gb4,G4}; //WRITE HERE WHAT NOTES TO LINK TO WHICH LEDS, MUST BE SAME NUMBER AS NUMBER OF LEDS ABOVE!
*/
int bpm = 100;
int song[100][2] = {
{C6,E},{AA5,E},{B5,E},{AA5,E},{G5,Q},{AA5,Q},{Bb5,Q},{B5,Q},{R,Q},{C6,E},{C6,E},{C6,Q},{B5,E},{B5,E},{B5,Q}
};
int num_notes = 15;
int led_notes[] = {C6,AA6,B6,G5};
/*
// Super Mario Bros (1985) Overworld / Main Theme
int bpm = 240; // want slightly faster
int song[100][2] = {
{E6,E},{E6,Q},{E6,Q},{C6,E},{E6,Q},{G6,H},{G5,H},
{C6,Q+E},{G5,Q+E},{E5,Q+E},{AA5,Q},{B5,Q},{Bb5,E},{AA5,Q},{G5,EE},{E6,EE},{G6,EE},{AA6,Q},{F6,E},{G6,Q},{E6,Q},{C6,E},{D6,E},{B5,Q+E},
{C6,Q+E},{G5,Q+E},{E5,Q+E},{AA5,Q},{B5,Q},{Bb5,E},{AA5,Q},{G5,EE},{E6,EE},{G6,EE},{AA6,Q},{F6,E},{G6,Q},{E6,Q},{C6,E},{D6,E},{B5,Q+E},
{G6,E},{Gb6,E},{F6,E},{Eb6,Q},{E6,Q},{Ab5,E},{AA5,E},{C6,Q},{AA5,E},{C6,E},{D6,Q+E},{G6,E},{Gb6,E},{F6,E},{Eb6,Q},{E6,Q},{AA6,Q},{AA6,E},{AA6,H}, //60
{G6,E},{Gb6,E},{F6,E},{Eb6,Q},{E6,Q},{Ab5,E},{AA5,E},{C6,Q},{AA5,E},{C6,E},{D6,Q+E},{Eb6,Q+S},{D6,Q+S},{C6,H}
};
int num_notes = 74;
int led_notes[] = {AA5,B5,E5,G5,C6,E6,F6,G6};
*/
void setup() {
pinMode(speaker, OUTPUT);
for (int i=0; i < (num_leds-1); i++) {
pinMode(leds[i], OUTPUT);
}
}
// turn on LED that matches note
void leds_on(int note) {
for (int i=0; i < (num_leds-1); i++) {
if (led_notes[i] == note) {
digitalWrite(leds[i],HIGH);
}
}
}
// turn on LED that matches note, turn off all others
void leds_on_v2(int note) {
for (int i=0; i < (num_leds-1); i++) {
if (led_notes[i] == note) {
digitalWrite(leds[i],HIGH);
} else {
digitalWrite(leds[i],LOW);
}
}
}
void leds_off() { // turn off all LEDs
for (int i=0; i < (num_leds-1); i++) {
digitalWrite(leds[i],LOW);
}
}
void play_note(int note, long duration) {
int blink_lights = 1; // false
if (blink_lights == 1) { // Turn on LED corresponding to note, if any
leds_on_v2(note);
}
if (note != R) { // only play if not a rest
tone(speaker, note, duration); // http://arduino.cc/en/Reference/Tone
}
delay(duration);
// if (blink_lights == 1) { // Turn off all LEDs
// leds_off();
// }
delay(1); // note separator
}
void play_song(int which_song) {
//int len = sizeof(melody)/sizeof(int);
for (int i=0; i < num_notes; i++) {
play_note(song[i][0], song[i][1]);
}
}
// the loop routine runs over and over again forever:
void loop() {
play_song(0);
delay(1000);
}
