Making Magic in a Cooler – Part 1

Andres and I were finally able to complete the Magic Cooler project and present it at the Freescale booth at Austin Mini Maker Faire 2015!  Now to document!

This project started out as something to help educate kids in learning to control Christmas lights with music using a microcontroller in an easy-to-use environment last year in the Makerspace for my son’s middle school.  At that time, we used an Arduino Uno, but I was able to pretty easily convert to using the much more practical and powerful Teensy 3.1 thanks to the Teensyduino software add-on.

The most challenging part of that Makerspace music project was the AC circuit side of the hookup.   To not modify the Christmas lights being controlled, I had to cut off the plugs on some sacrificial Christmas lights to serve as the controlled outlets.

I had since wanted to do a project upgrade, using regular AC duplex outlets to control many more lights!  And fit it all into a portable, rugged “box” of some sort.

As with any project, I started off with some thoughts:

IMG_20150227_153045

Initial concept drawing

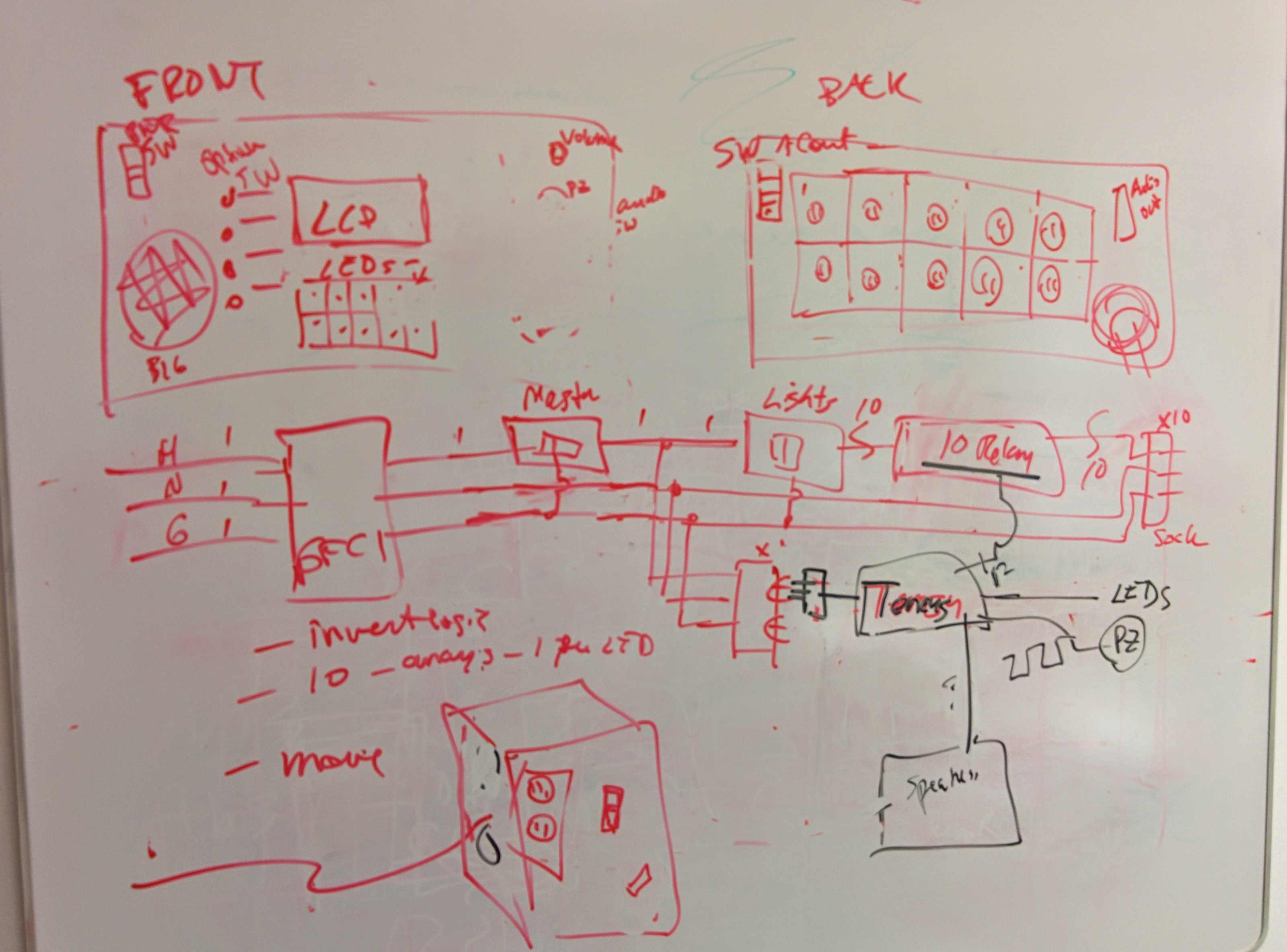

IMG_20150409_180125

A bit of circuit diagram in there.

Initially, I had wanted to use a cheap, black toolbox to house the AC circuits.  But after some measurements of the interior, it seemed a bit cramped for what I wanted to add, and the walls seemed too thin to support installing the ‘blue boxes’ needed to properly contain the AC outlets.

Fortuitously, I was cleaning out the garage around this time, taking stuff to Goodwill.   As I was putting this blue Coleman cooler with broken lid hinges into the trunk of the car, it hit me that this would be the perfect container for a portable music and light show:

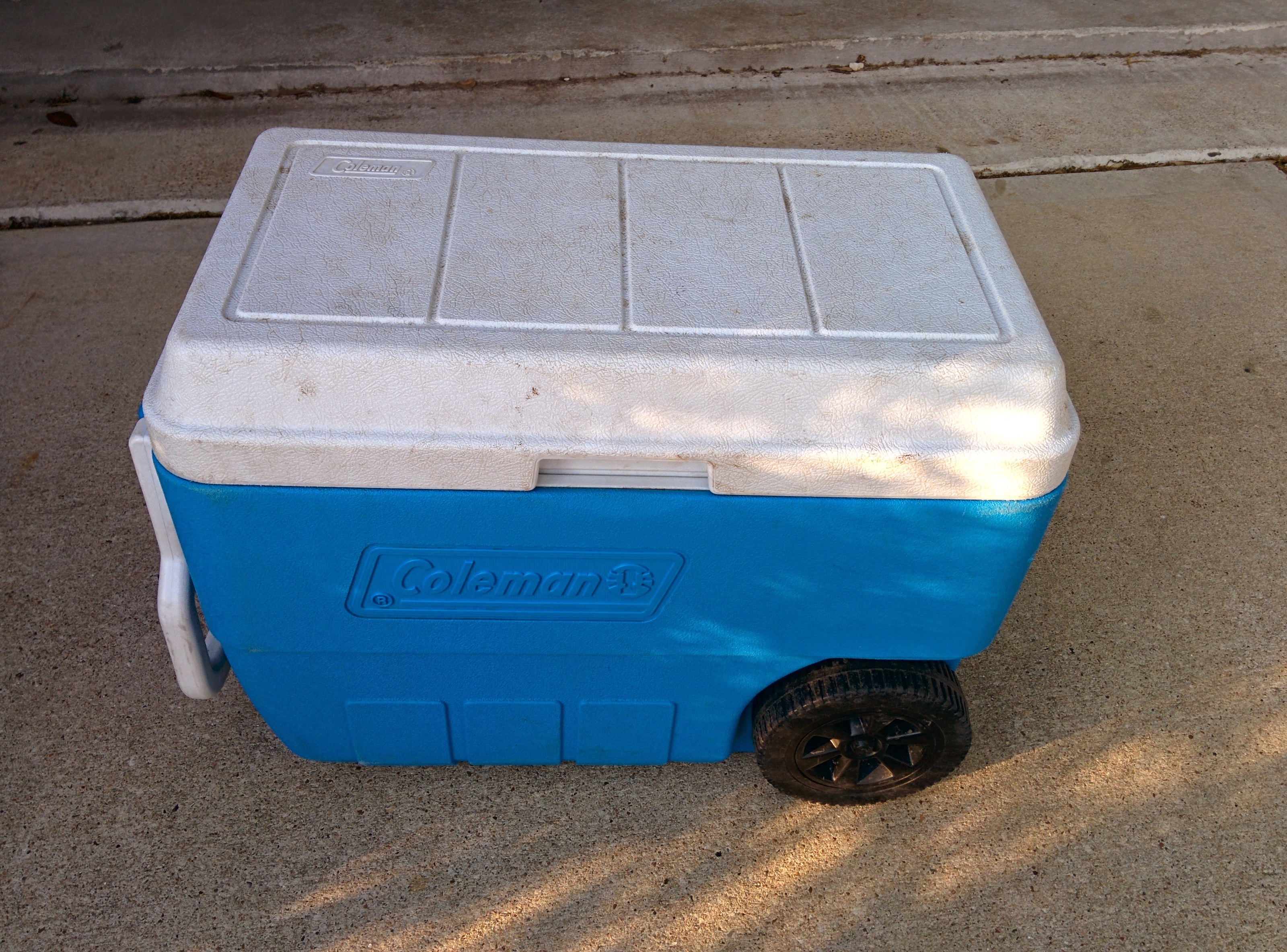

IMG_20150401_185649

All kinds of possibilities!

It has 1″ thick walls, lots of room inside, a handle and wheels!  The lid not being hinged on is actually a plus as it allows removing the lid completely to permit work inside.

Part 1 of this article will focus on the physical and AC electrical side of the build.

Electricity and Safety

I wanted first and foremost for the AC part to be as safe as possible.  Just like in the walls in your house, what that means is containment of all connections via blue boxes and a master junction box.  It also means having a circuit breaker or a ground-fault circuit interrupter.  I chose the latter.

Step 1: Install the AC blue boxes and outlets in the sidewalls of the cooler.

I wanted to have 10 outlets total as I have 10 relays available for control, which means having 5 duplex outlets.   I also wanted a simple light switch to help to turn off all exterior outlets if necessary, for safety reasons and to permit debugging code and music without having to worry about driving the external lights.  The outlets were planned to be on the ‘back side’ of the cooler.

Out came the cutting tools…

IMG_20150401_185716

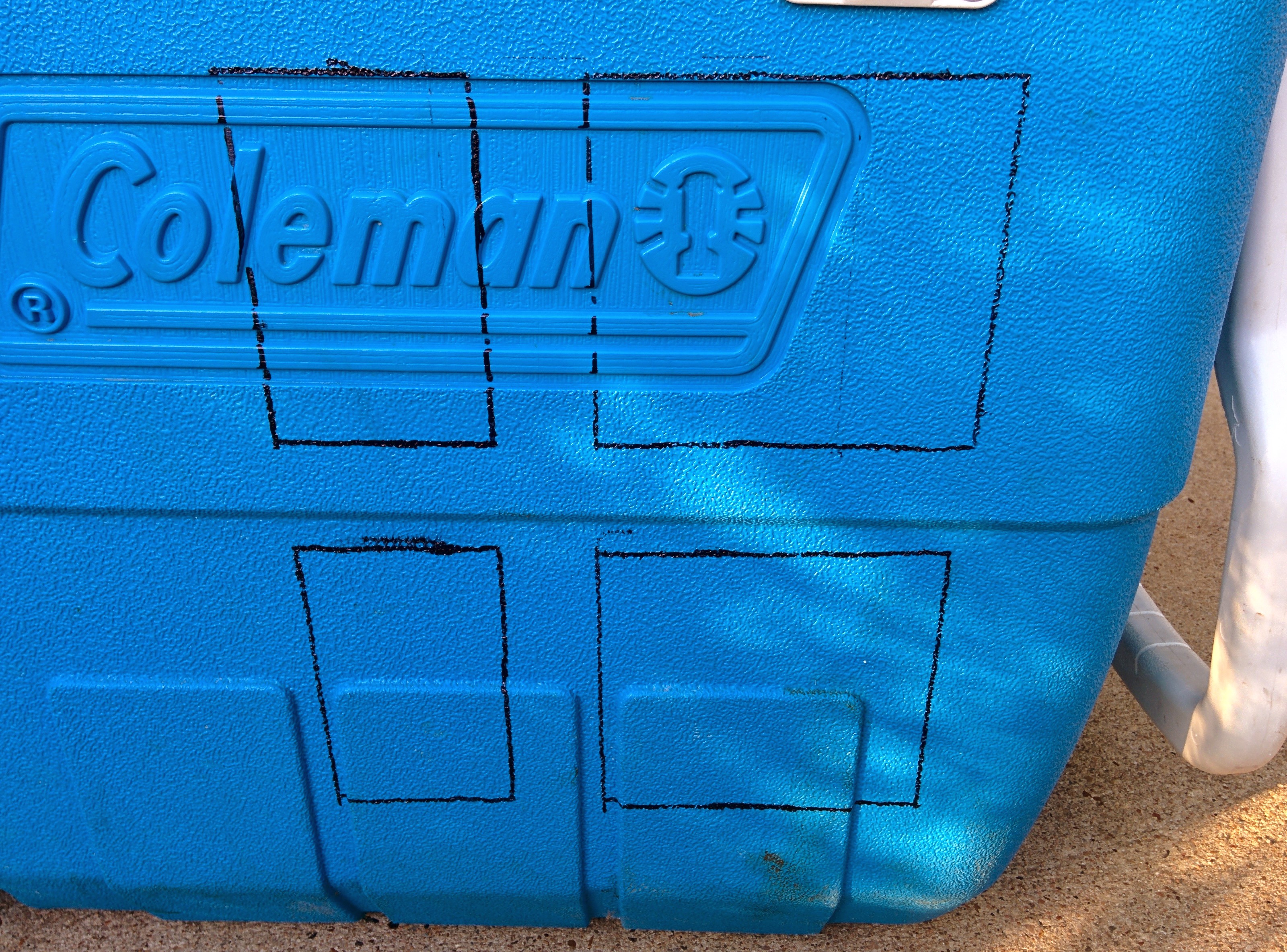

Outline for blue boxes on Cooler back side.

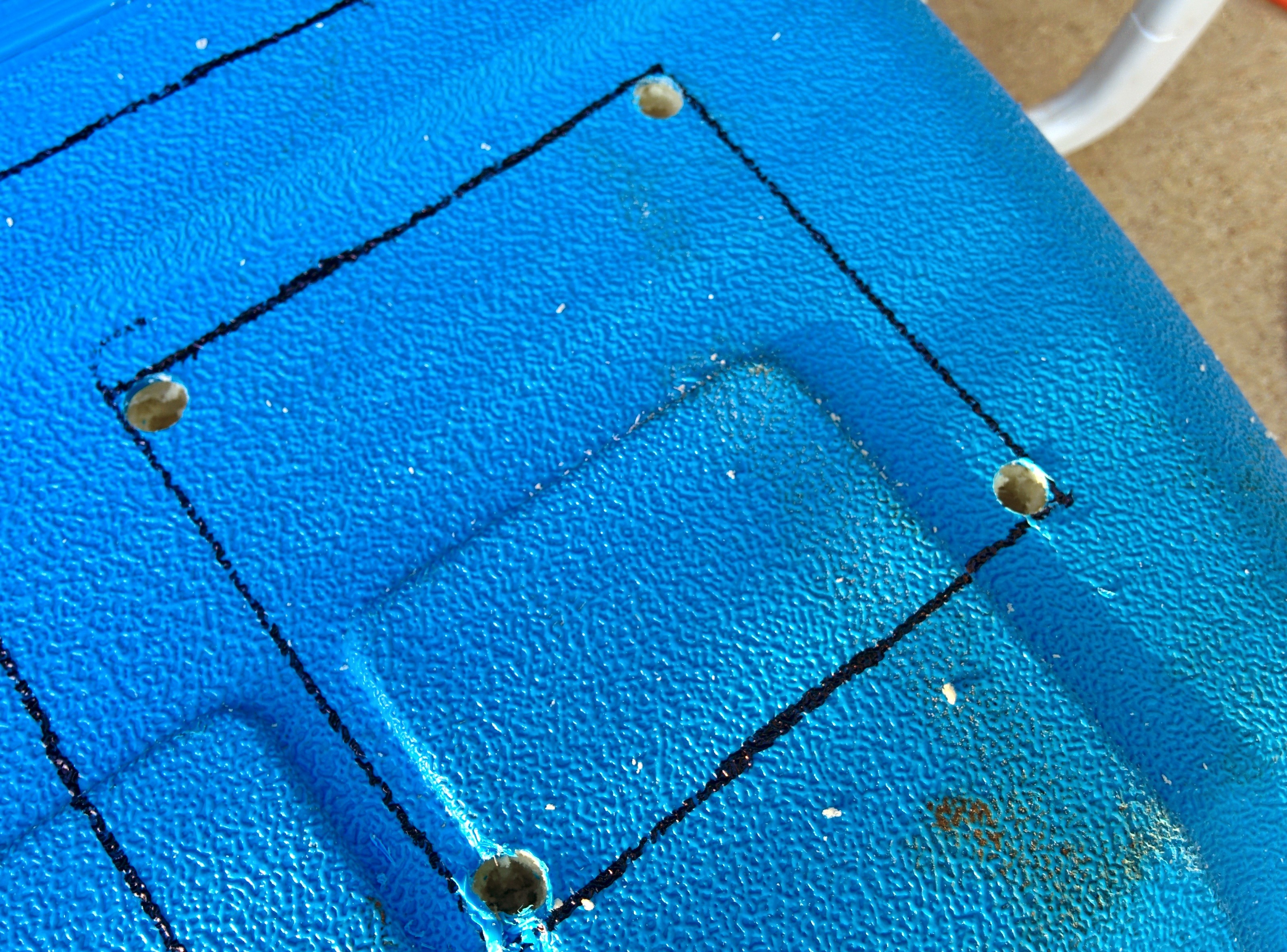

IMG_20150401_185818

Holes drilled at the corners. Used a bit large enough to permit inserting jigsaw blade later.

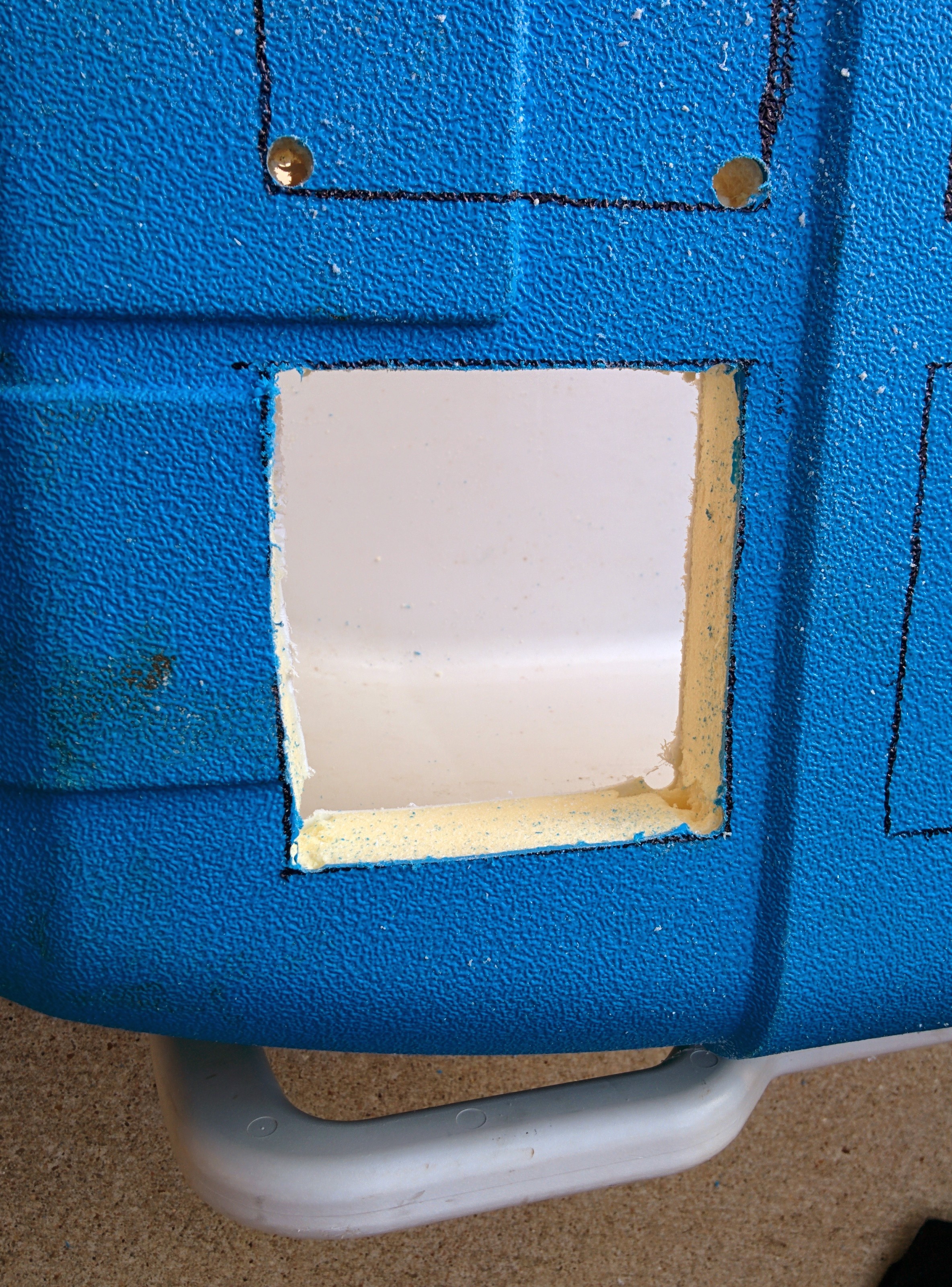

IMG_20150401_190831

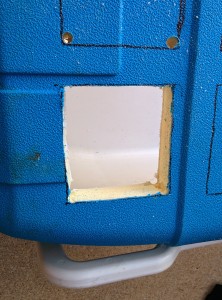

Used a jigsaw inserted into the corner holes to cut out the rectangles.

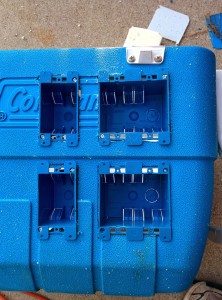

IMG_20150401_191802

Screwed in the boxes.

Normally, in a house wall you’d want to attach these blue boxes to a stud behind the drywall.  However, in this case the plastic exterior and interior of the cooler were tense enough to support the boxes.

The next step was to loosely install the AC outlets to check the fit.  I planned to remove them again later when doing the final wiring so here just installed them mainly as a placeholder.  Prior to the install, since I wanted to individually control the outlets later, I went ahead and removed the tab connecting the hot sides together.  I used pliers to wiggle the tab back and forth to break it off.

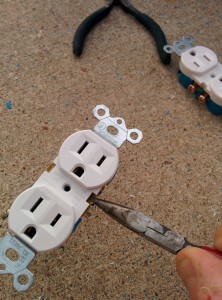

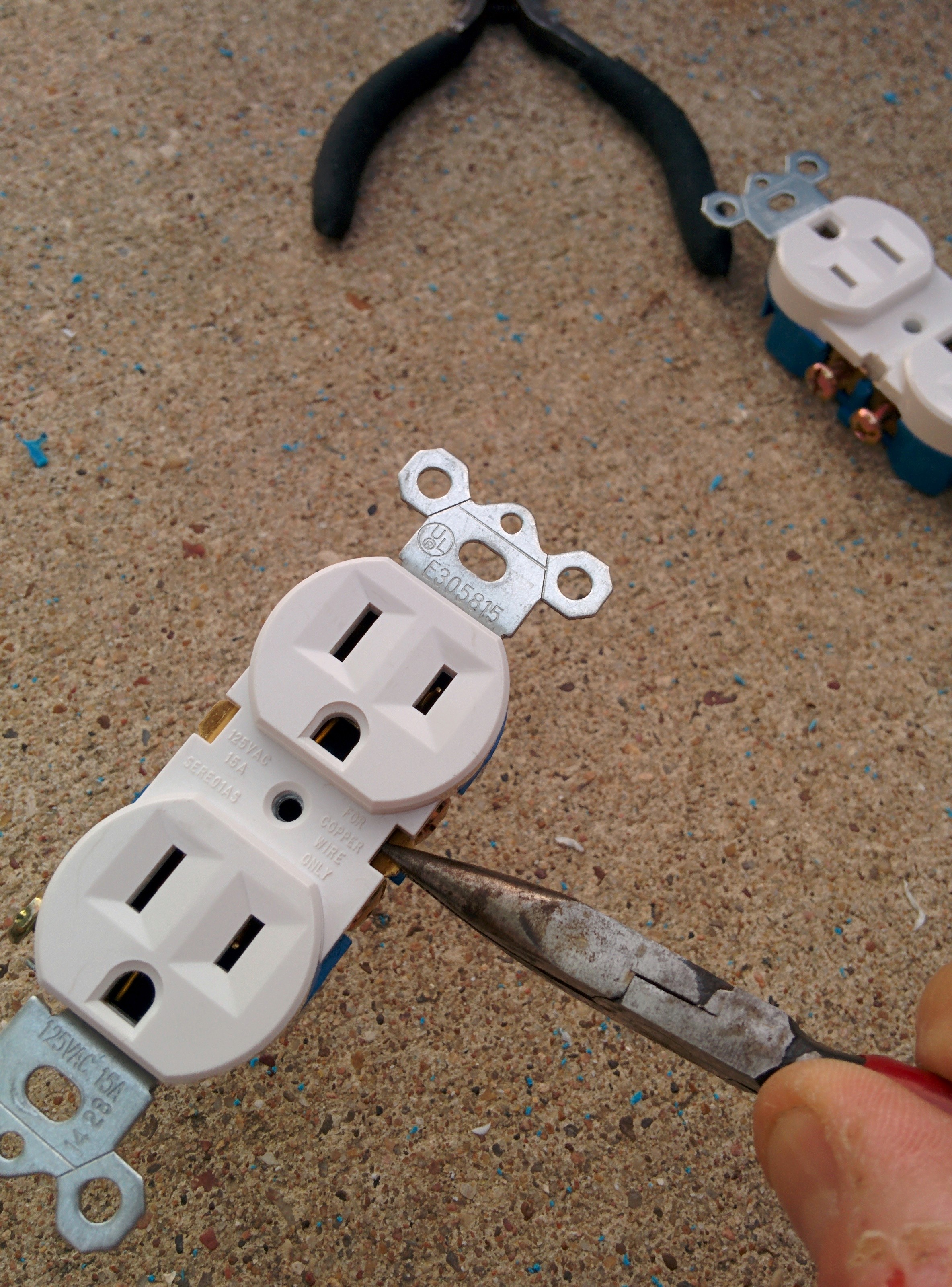

IMG_20150401_194919

Removed hot side tab shorting the two outlets together.

IMG_20150401_194940

Tab removed.

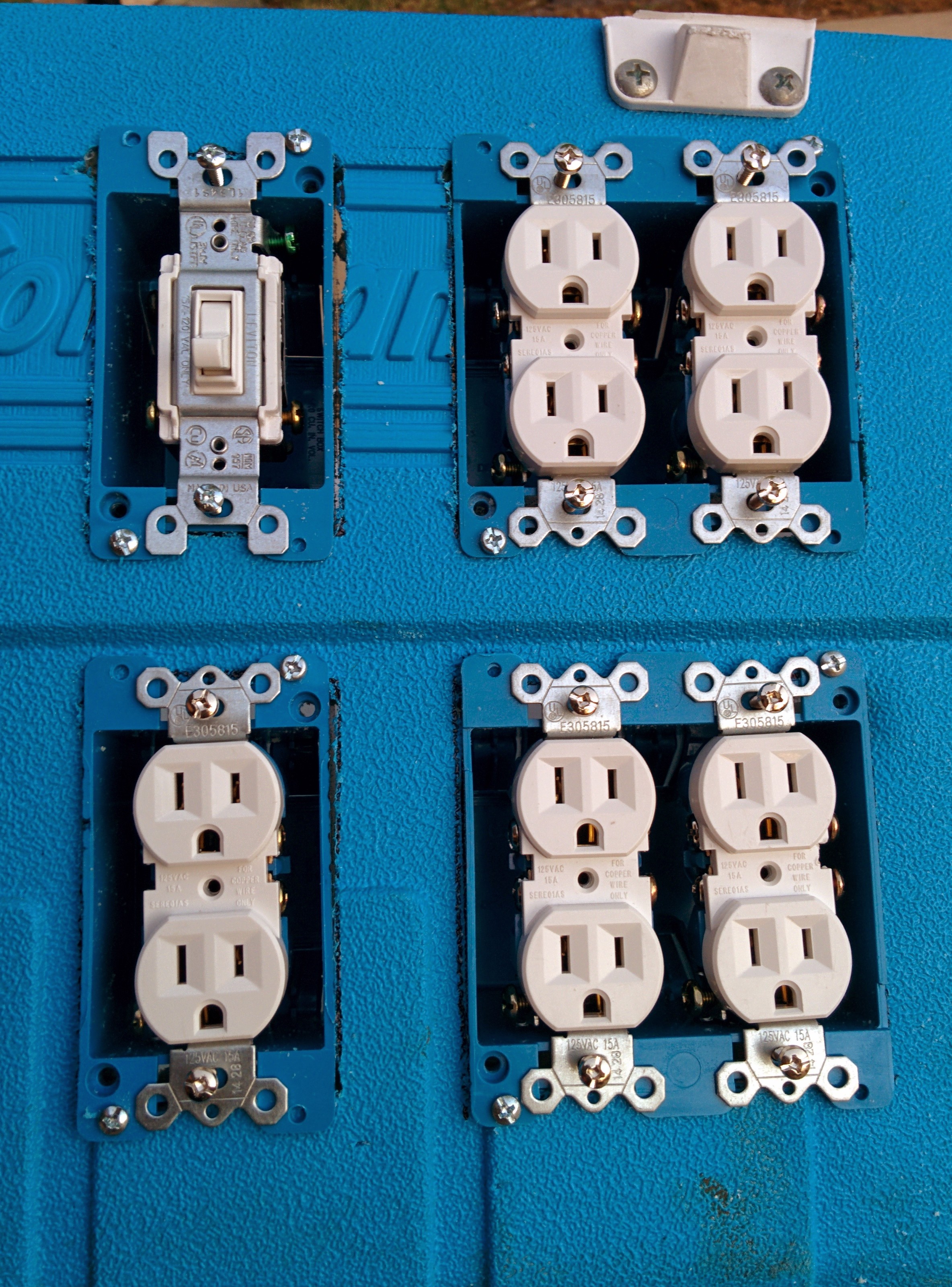

IMG_20150401_195539

10 outlets and 1 switch added.

Wiring

Step 2, wire up the AC circuit.  Here’s a diagram showing the AC side of the circuit:

AC_circuit_bb

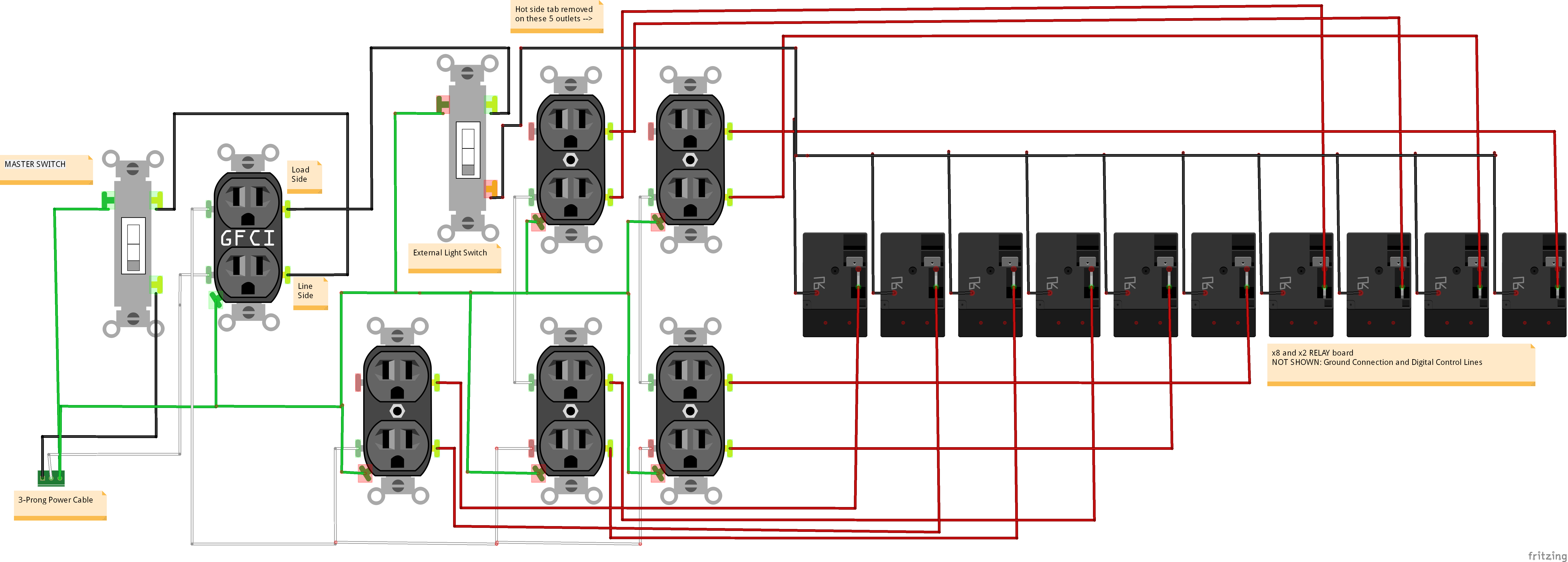

AC side of Magic Cooler Circuit

Basically, power comes in to the Cooler via a 3-prong wire (hot-neutral-ground) and goes through a master switch and a GFCI outlet which will be located inside a separate blue box inside the cooler and serves to protect the remaining outlets downstream.  Let’s follow each line separately:

  • Ground (GREEN):  Directly connects to every ground screw you can find.   Not shown above is the ground connection to the metal junction box housing the 10 relays.
  • Neutral (White):   Connects to LINE side of GFCI outlet– comes out of LOAD side of the GFCI receptacle and connects to the Neutral connector of every downstream outlet.
  • Black (Hot):  Connects to LINE side of GFCI outlet– comes out of LOAD side of the GFCI receptable and connects to the secondary Light Switch.  Hot leaves this light switch and connects via a bus terminal to the Normally Open side of each of the 10 relays.
  • Red (Switched Hot):  Connect from the common terminal of each of the 10 relays to the Hot screw for each of the 10 switched outlets.

I used #12 Romex to do the wiring, although I probably should have used something smaller gauge for the short runs here as #12 is difficult to work with (hard to bend), but at least now I know the circuit is very robust.

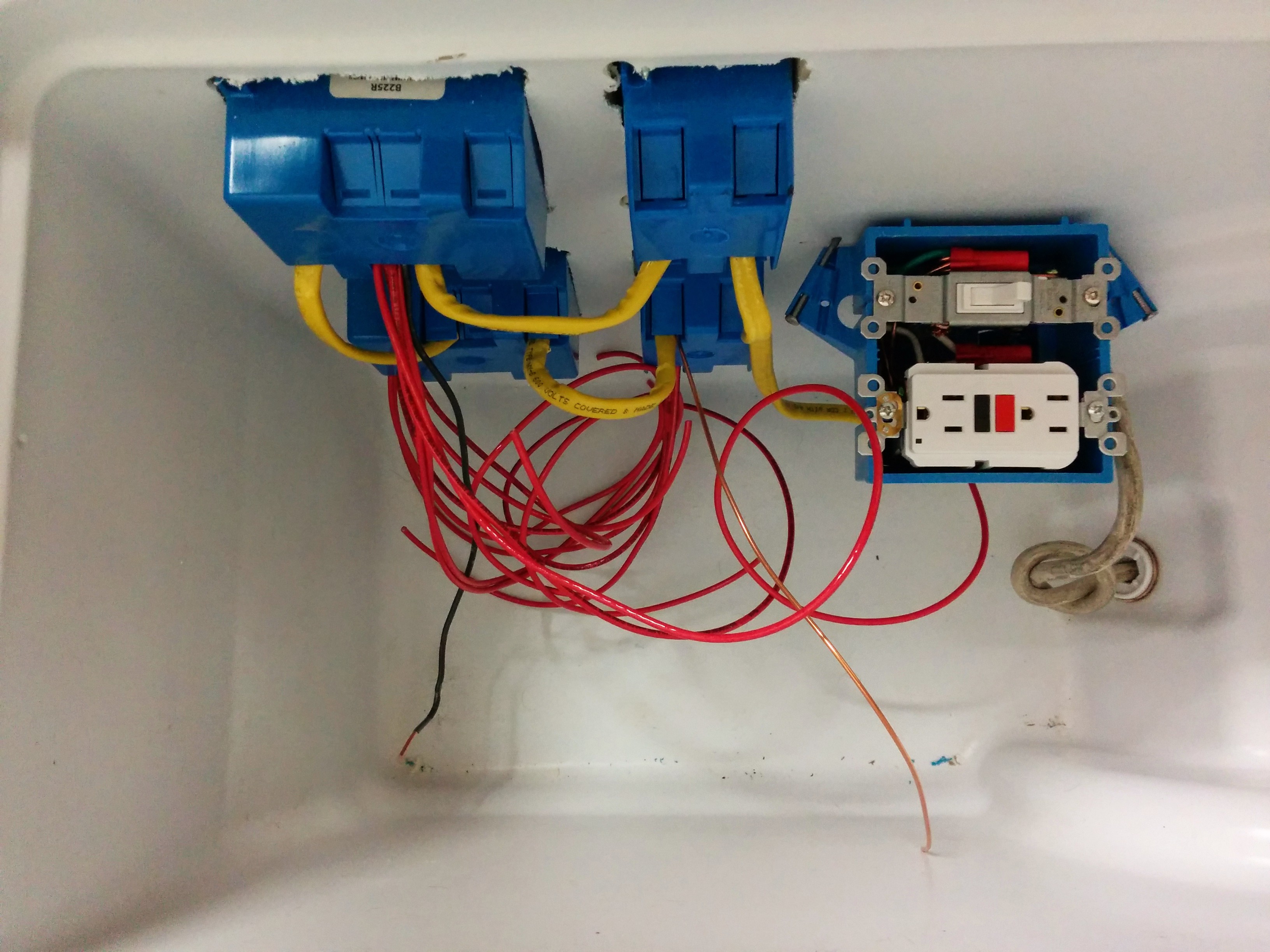

IMG_20150423_182819

Main blue box wiring done.

I ran the 3-wire Romex box to box just as is done in a house wall.  However, after the first set of duplex outlets the hot (black) wire was removed from the Romex bundle and brought down to where the future junction box would be.  Red wires were connected to the hot side of each of the 10 outlets and also run down to where the junction box would eventually be.

I decided that the GFCI receptacle and master switch should be located inside the cooler.  The GFCI provides some protection from accidental touching, wires coming loose creating shorts, and would help if I ever planned to take the Cooler outside.   It would also serve as a standard outlet to power the microcontroller board and other accessories.

Since the Cooler already had a nice, convenient drain hole, I decided to use that to run the main power cord.   I cut the power cable from a 10-outlet power strip so was confident it had sufficient current-carrying capacity. A knot was added to prevent from accidental tugs on the power cord from damaging the internal wiring.

Next step, the junction box.

Junction Box Prep

The junction box was used to house the bus terminal to expand the single hot (black) wire to the 10 relays and the connection of those relays back to the switched outlets (red wire).  In case of any electrical fire or loose wire, the box would serve as containment and/or ground.

Some electrical stuff is just cheaper to get on Ebay than at your local hardware store, so I found a really nice and strong junction box on Ebay that was the perfect size.

box

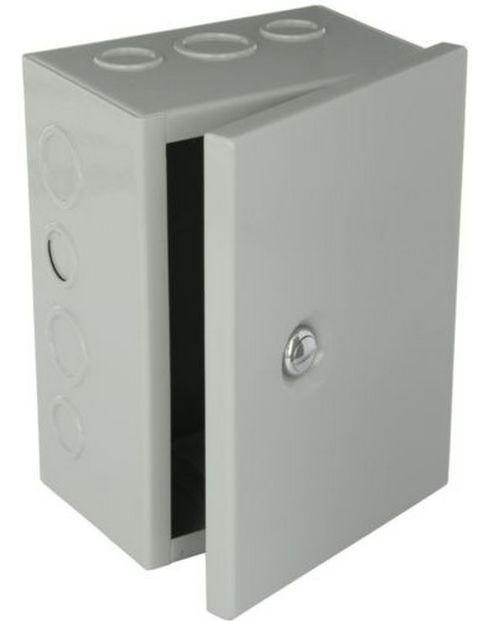

Metal Junction box off Ebay

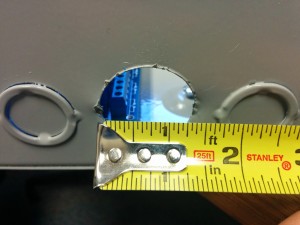

Next, I had to pop out the 1″ and 3/4″ holes in the box (not easy!) in order to permit inserting cable clamp connectors.  These served to hold any wires going into and out of the box and prevent them from rubbing against the edge of the metal hole.

IMG_20150430_105957

Next, I screwed the box to the bottom of the cooler to hold it in place.  I made the junction box door open to the side opposite the blue boxes, to permit easy access.

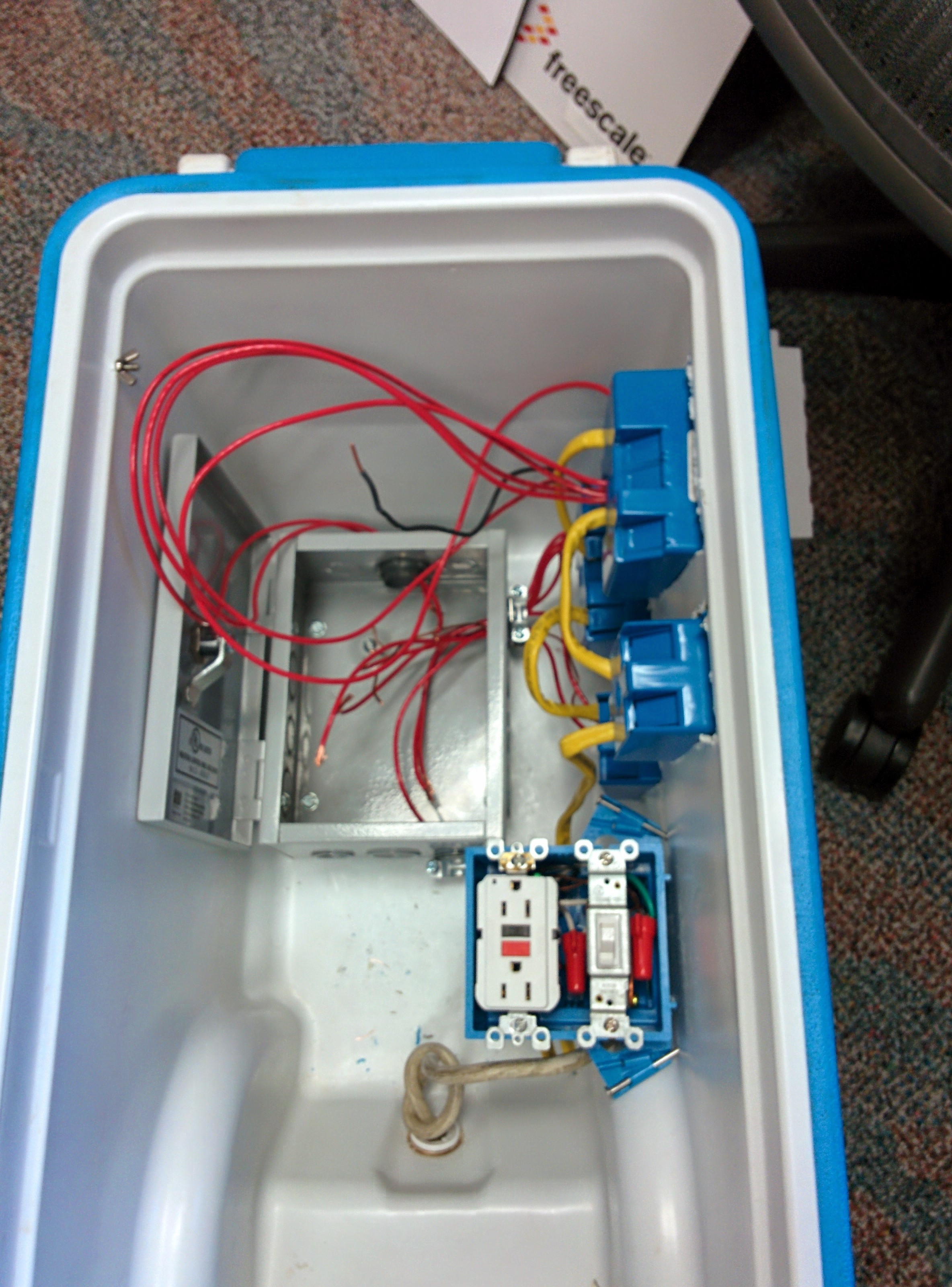

IMG_20150502_115127

Junction box mounted to the cooler.

Then, I connected the ground line to the ground screw of the box itself.   Double-stick tape was then added above each of the mounting screws to prevent shorting anything inside to ground inadvertently.

IMG_20150506_162938

Box screwed down to cooler bottom with tape above each screw. Note the ground wire connected to the box.

Junction Box Wiring

This was probably the trickiest part of the entire build: Wiring up the relays and the bus terminal block and mounting them inside the junction box IN THE BOTTOM OF A COOLER.

Basically a bus terminal block is just a way to connect heavy gauge wire together:

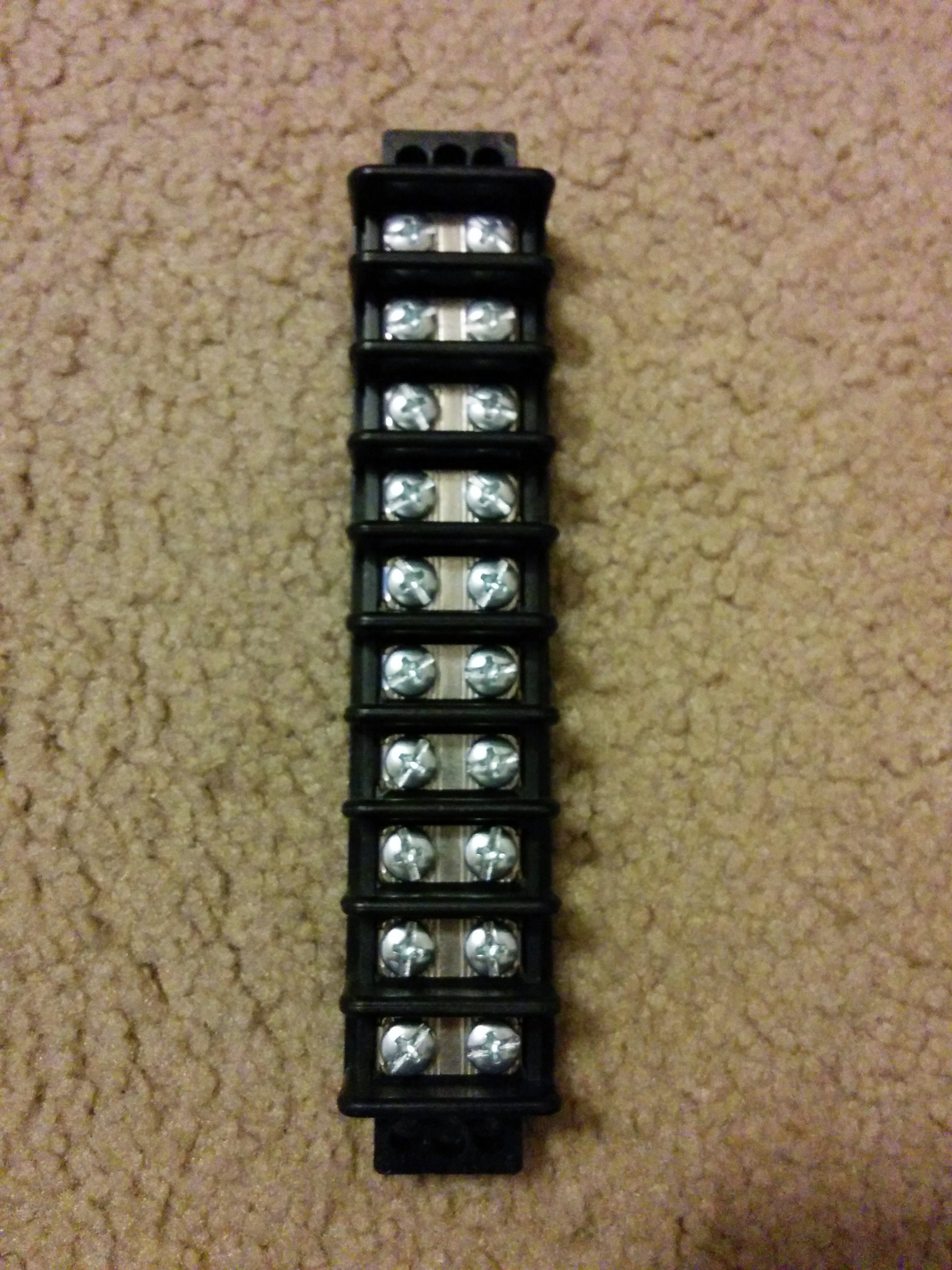

IMG_20150416_194046

bus terminal block

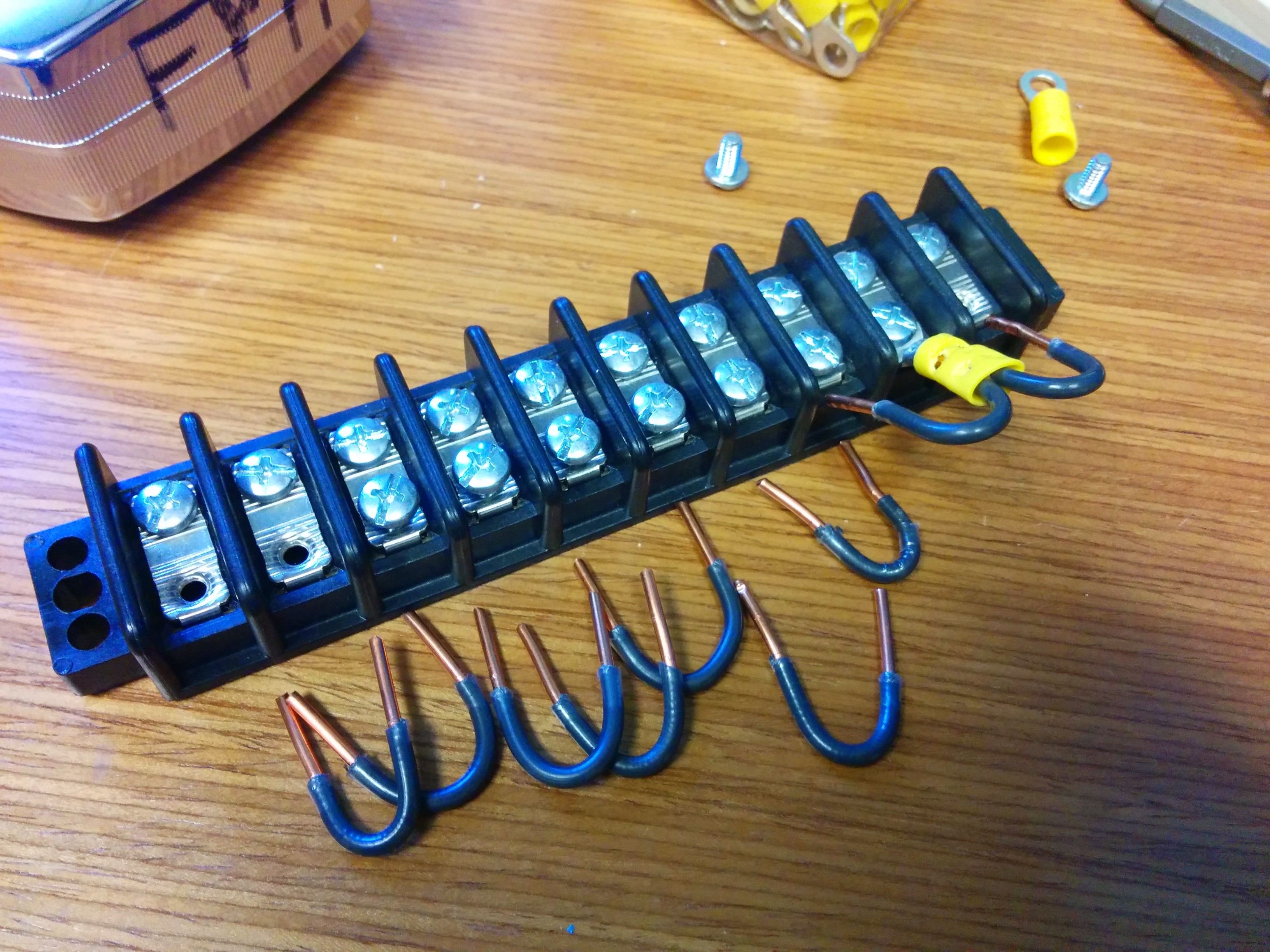

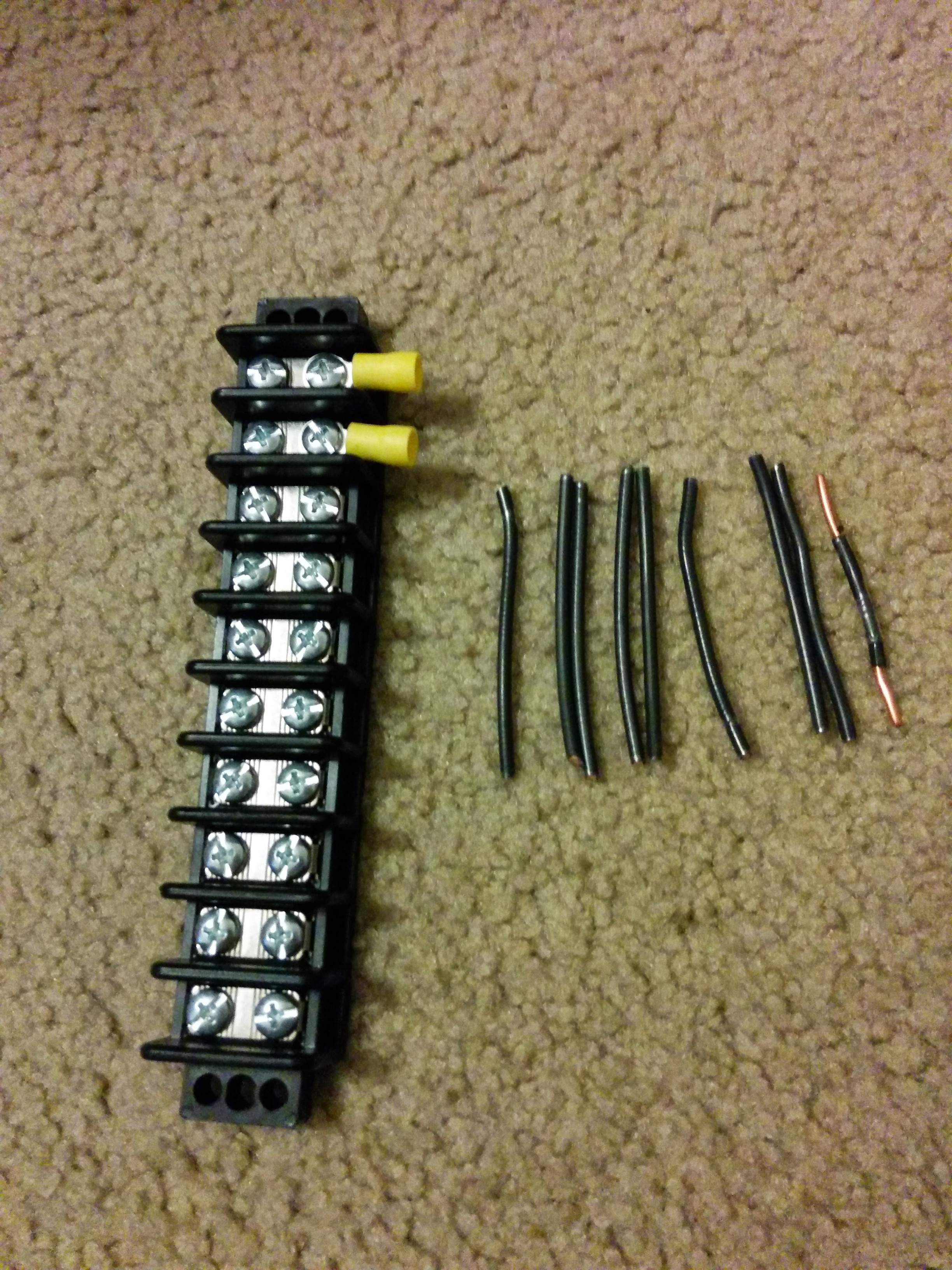

By using short U-shaped pieces of the hot (black) wire and ring terminal connectors, I was able to use the bus terminal block to help connect the line hot wire to the Normally Open (NO) side of the 10 relays.

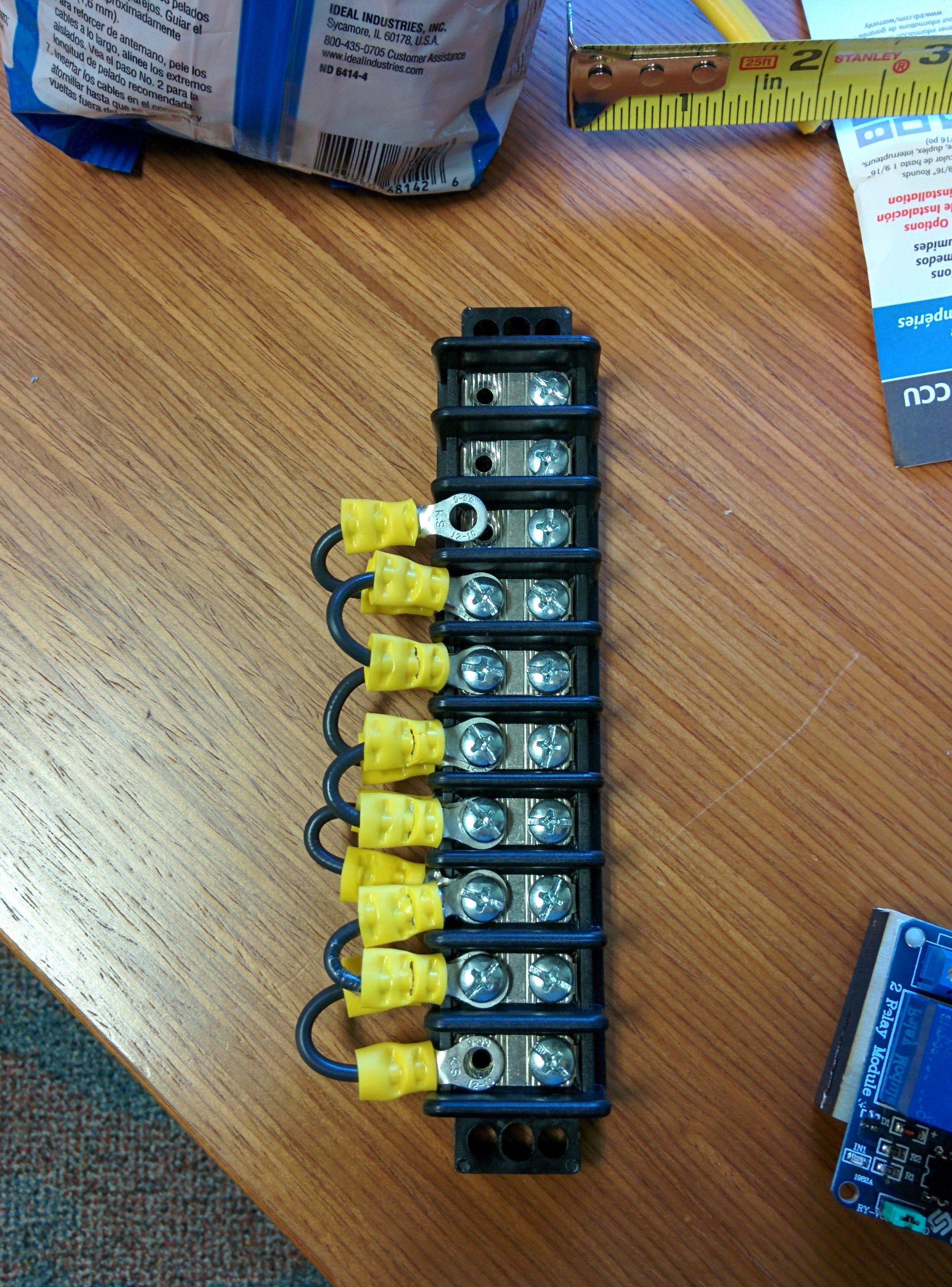

IMG_20150416_195103 IMG_20150430_111641 IMG_20150502_115121

Given the fact that I had already mounted the junction box into the cooler, I made a template out of a old box that had the same dimensions of the interior of the box to permit doing most of the the wiring in a more comfortable way.

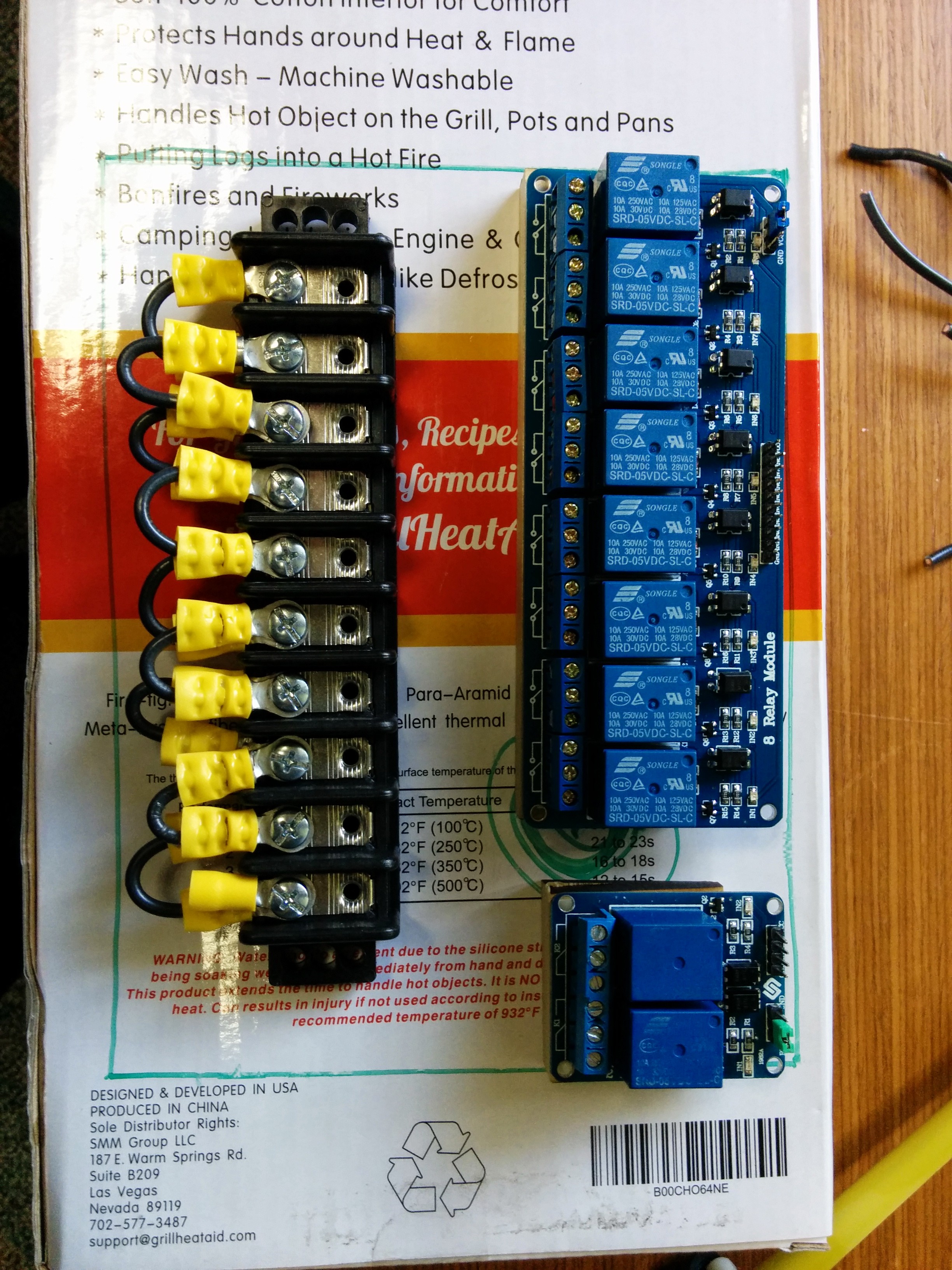

IMG_20150504_125759

Green line here is the limits of the inside of the junction box.

It was a good thing too that I didn’t have a single x10 relay board– as the junction box has a big bump around the ground screw.  So the break between the x2 and x8 relay boards helped to accommodate this bump.

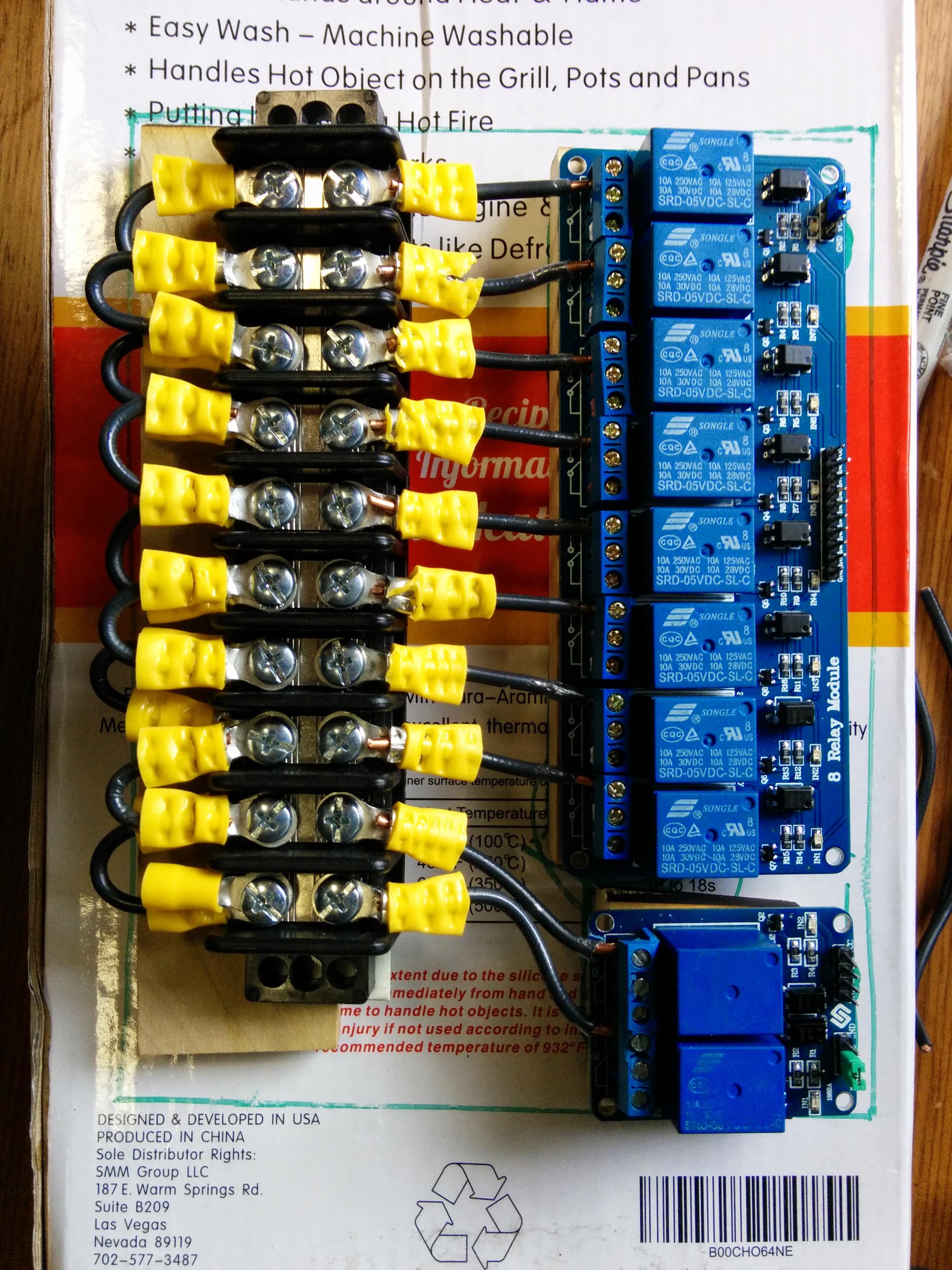

IMG_20150504_135200

Each of these placed on a block of wood to provide stability and isolation from ground.

Given that #12 Romex is very stiff, this was the best way to ensure that the final assembly would in fact fit into the box.   Although, if I had to do it over again, I would probably have used a smaller gauge wire, as with #12 it was very difficult to interface with the relay terminal blocks.  I had to ‘encourage’ them to connect.

IMG_20150506_120019

Get in there…

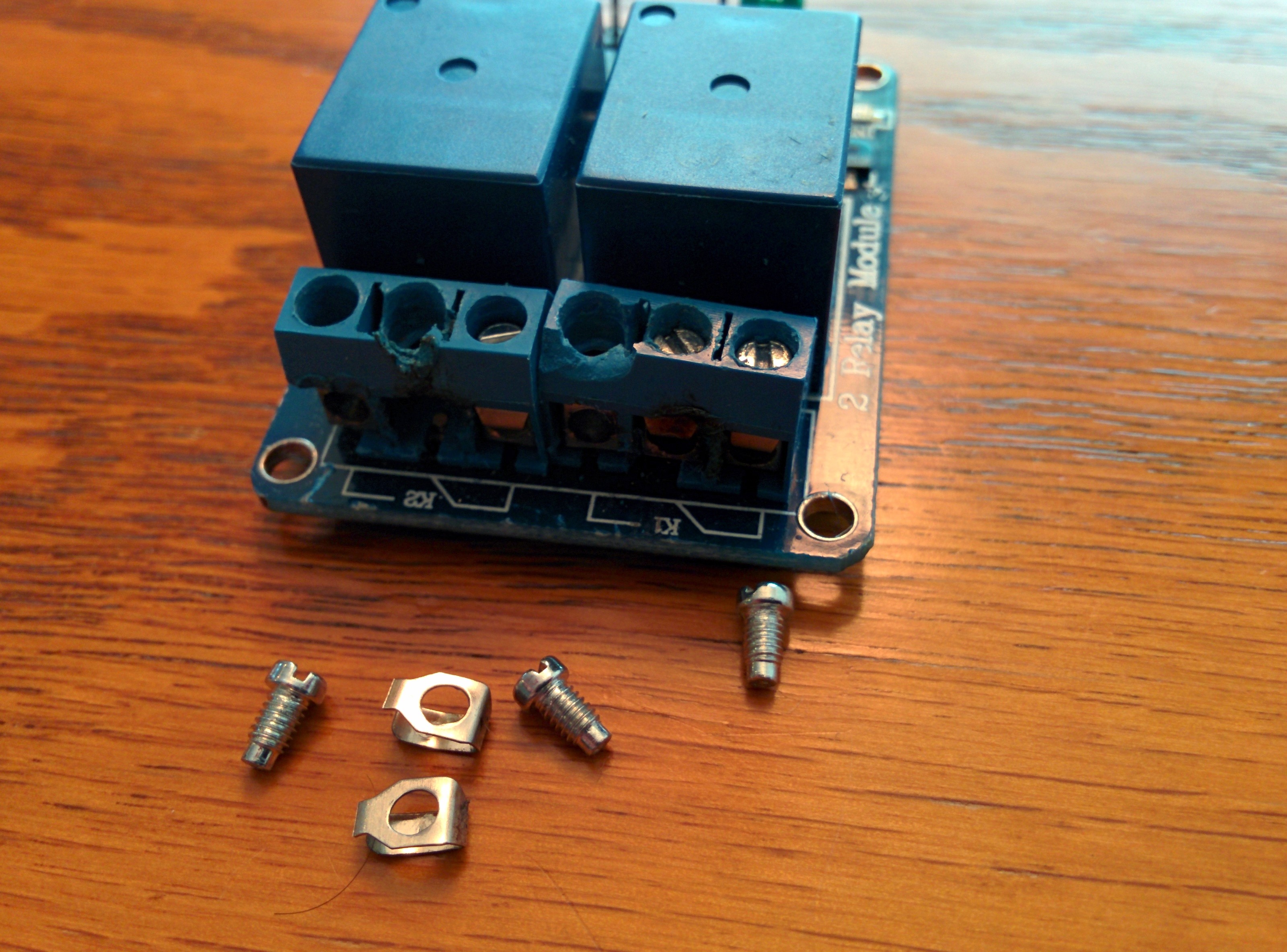

IMG_20150506_191449

What happens when you force 12-gauge Romex into relay terminal block. This board had to be replaced.

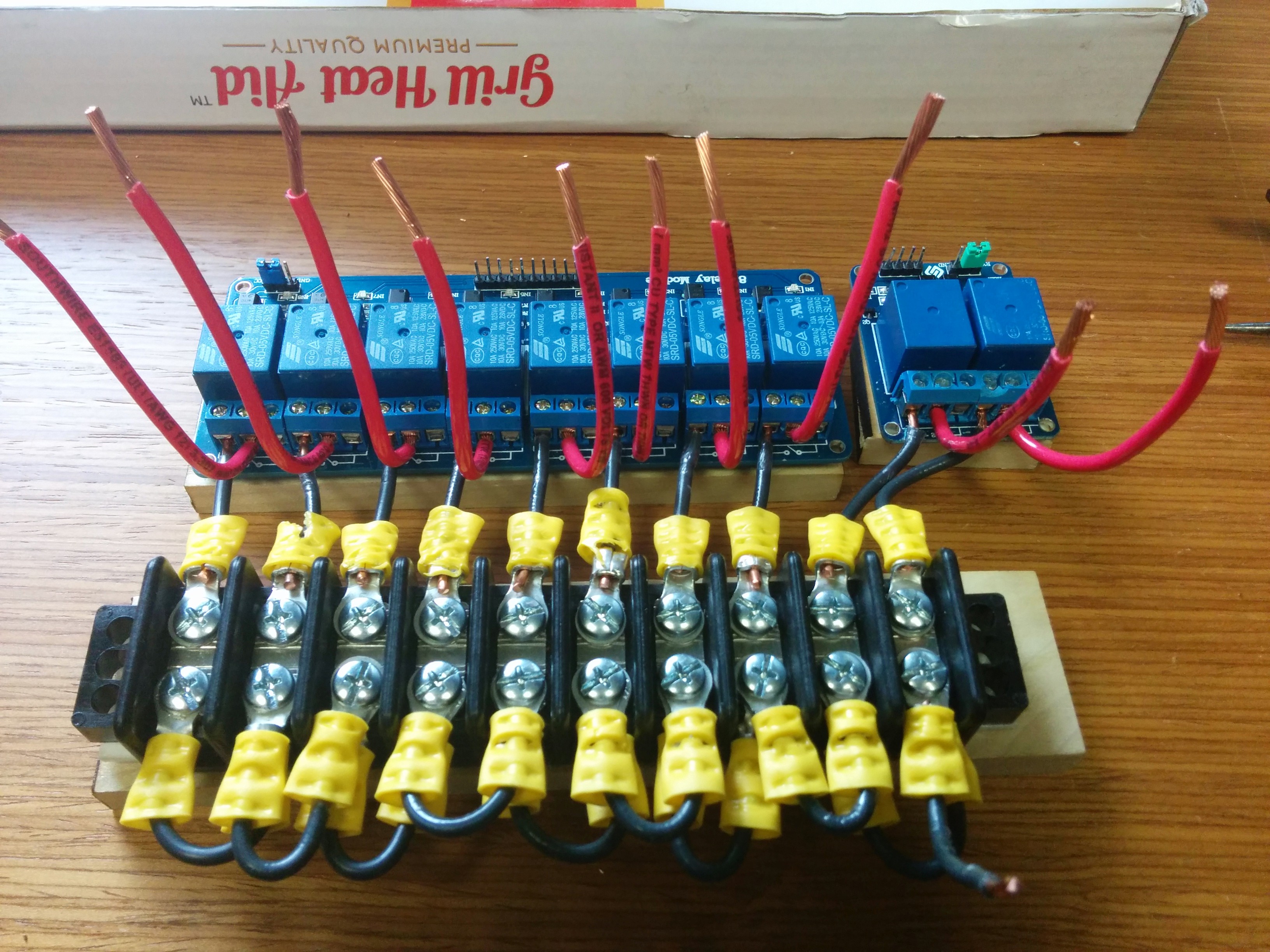

IMG_20150506_121357

Finally done!

IMG_20150506_163110

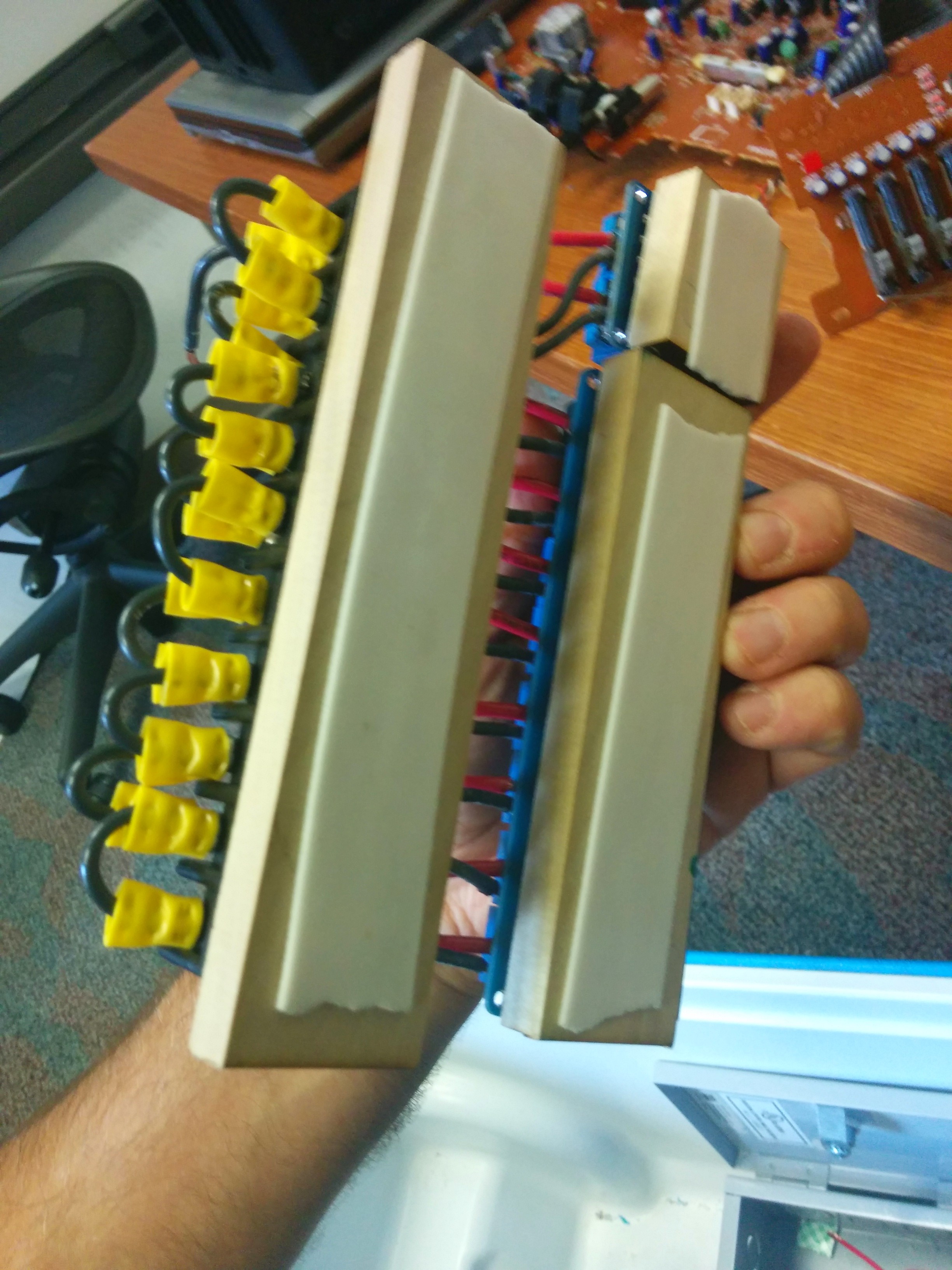

Double-sided tape added!

By the way, color coding when working with AC circuits is VERY important: Black connects to black, red to red, ground to ground.

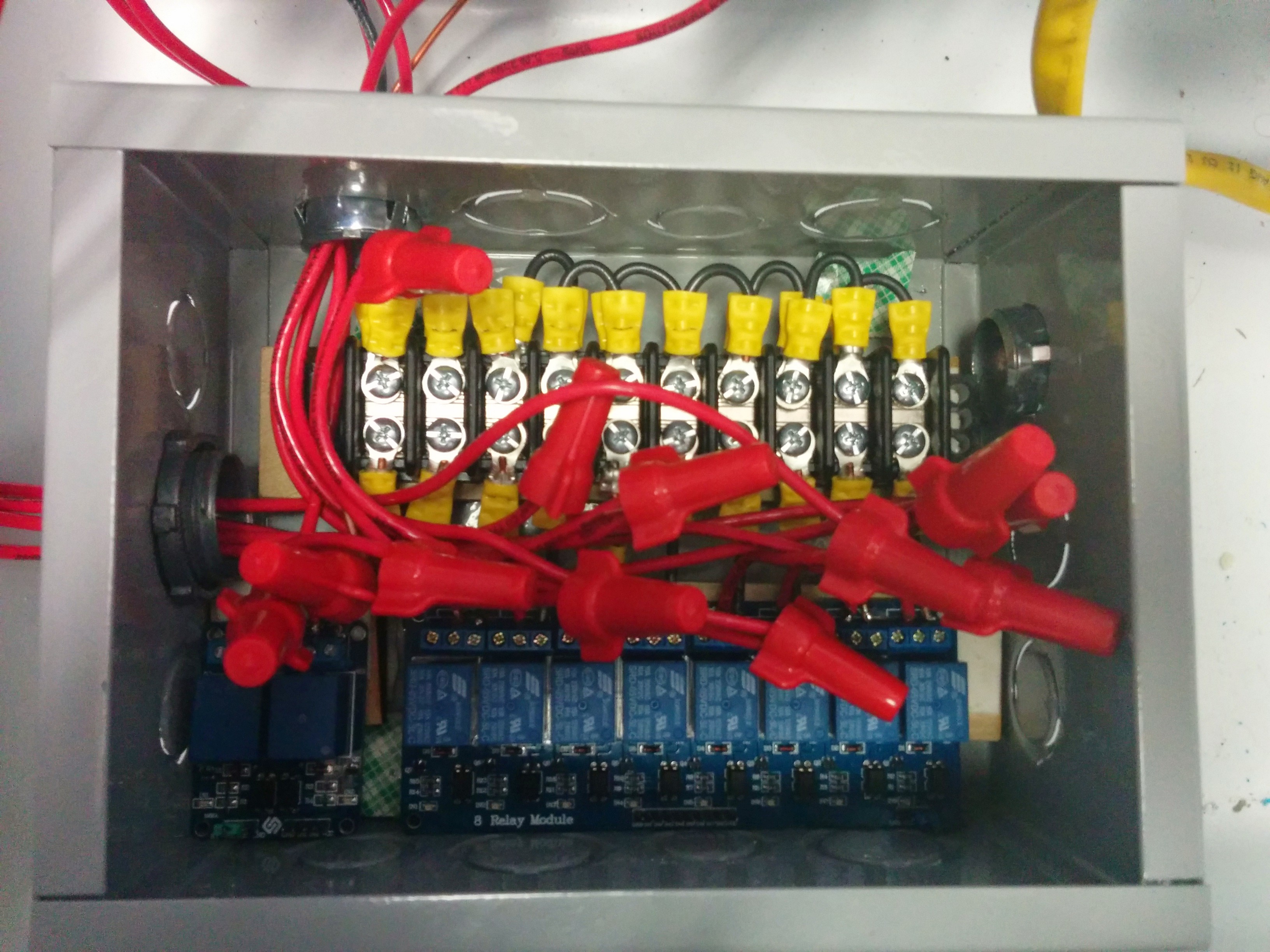

IMG_20150506_165335

Perfect fit!

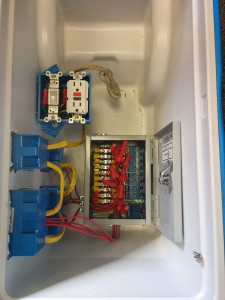

IMG_20150506_165806

Not bad!

Enclosing

Now that the AC wiring was done, the next step was to enclose all AC circuitry to prevent accidental mishaps.

(Well, in reality the next step was testing all the connections with an ohmmeter, of course without connecting the AC!  This should be done at ALL stages of the AC wiring).

To enclose the exterior outlets and light switch, we decided to add weatherproof covers.  These were readily available at the hardware store.

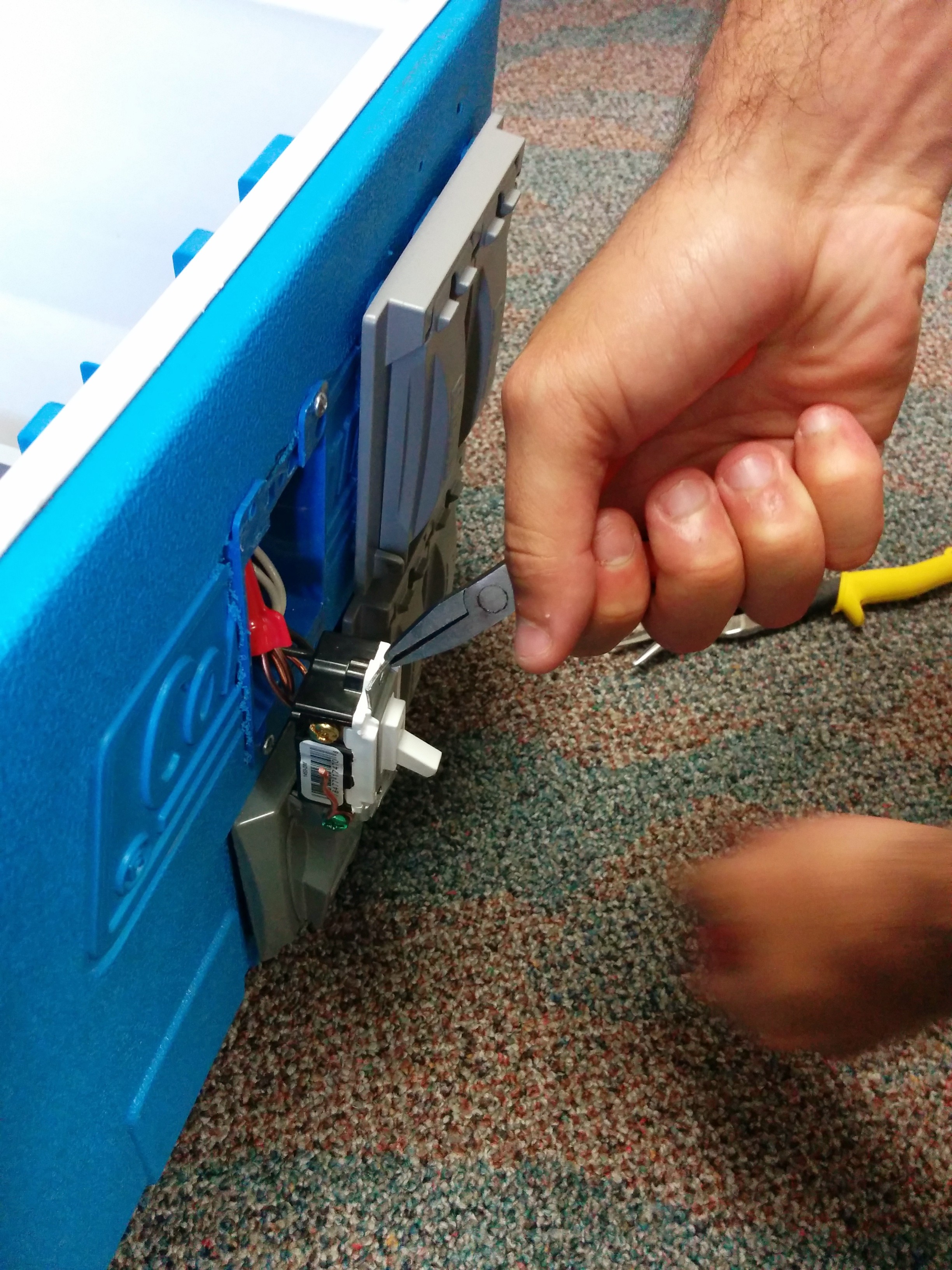

IMG_20150504_125804

Andres clipping excess metal to add the switch cover.



IMG_20150526_112241

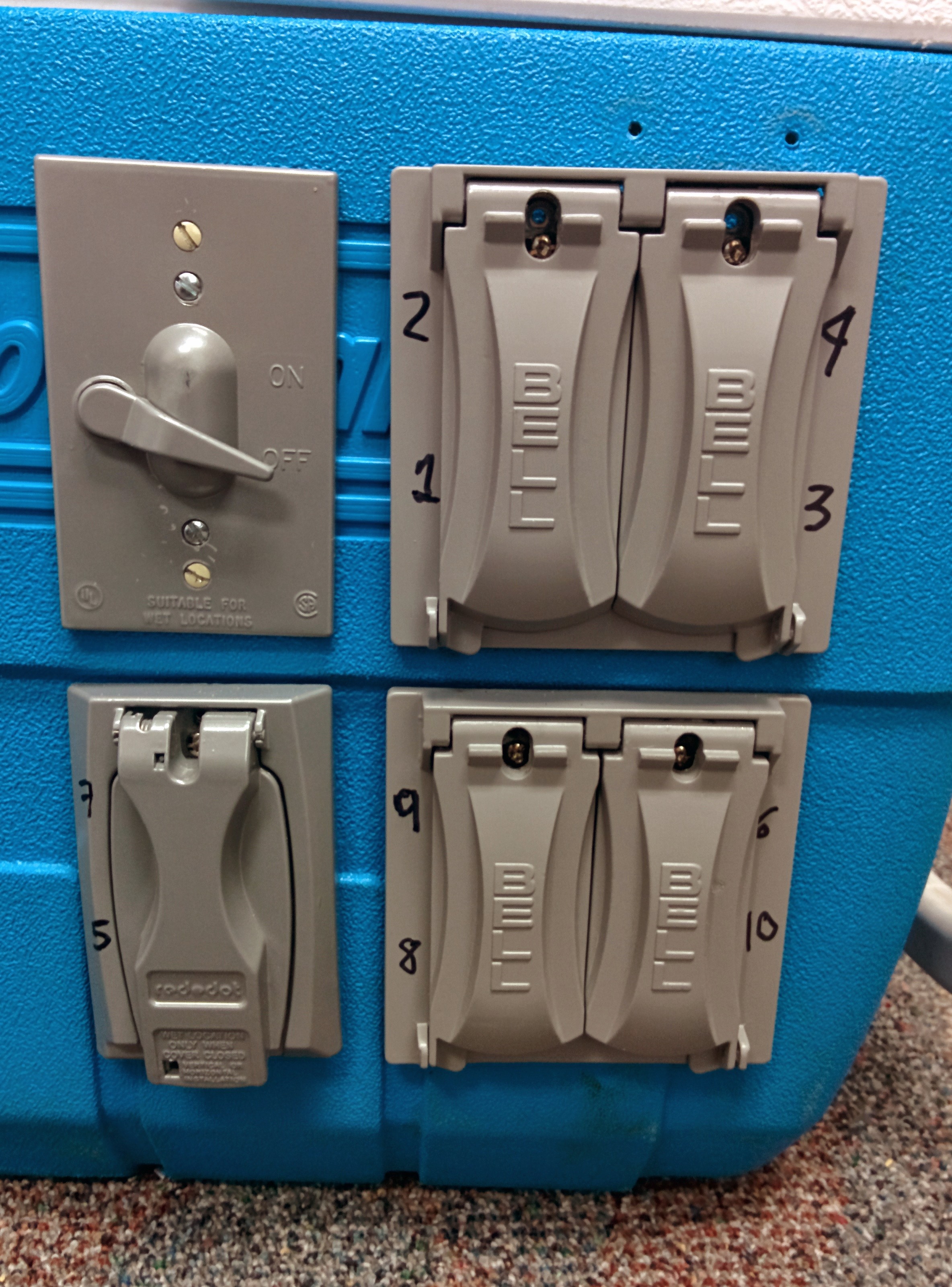

Outlet and switch covers added

Note that we still need to caulk the gap (like you would at your house) around these enclosures if we truly want the Cooler to be waterproof.  The covers were numbered with which relay they were connected.  I cared more about the relay order being numbered sequentially than the outlets.

The next step for safety was to enclose the entire interior of the cooler with an acrylic “lid”, so the curious could still view the interior, but do so safely.  The idea was that all AC circuitry would be below the lid, and all DC or microelectronics and prototyping related stuff would be sitting on the lid like a shelf.

The cooler provides a nice lip around the top of the inside where the lid/shelf fits and since it’s very thin doesn’t interfere with placing the Cooler top/lid in place.   The Cooler lid actually has a large interior as well so you can still fit several inches worth of stuff on the acrylic lid/shelf.

In order to fit the hole exactly, we used a laser cutter to round off the corners.    Cardboard test pieces (not shown) were put into the laser cutter until we got the corner exactly right then the same design was reused on the acrylic.   Due to limitations of the interior of the laser cutter, we had to use two separate pieces of acrylic.

To join the two parts of the lid together, two handles were 3-d printed and attached.   Holes were then added where control and other wiring between the AC and DC parts of the system would go.  A notch was added to one side for the power plug for Computer speakers that would be doing the sound.

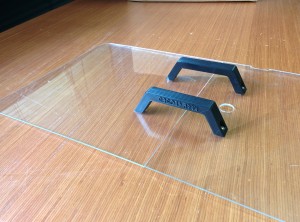

IMG_20150526_112336

Safety lid

Finally, a warning sticker was added to indicate the dangerous nature of what was beneath.

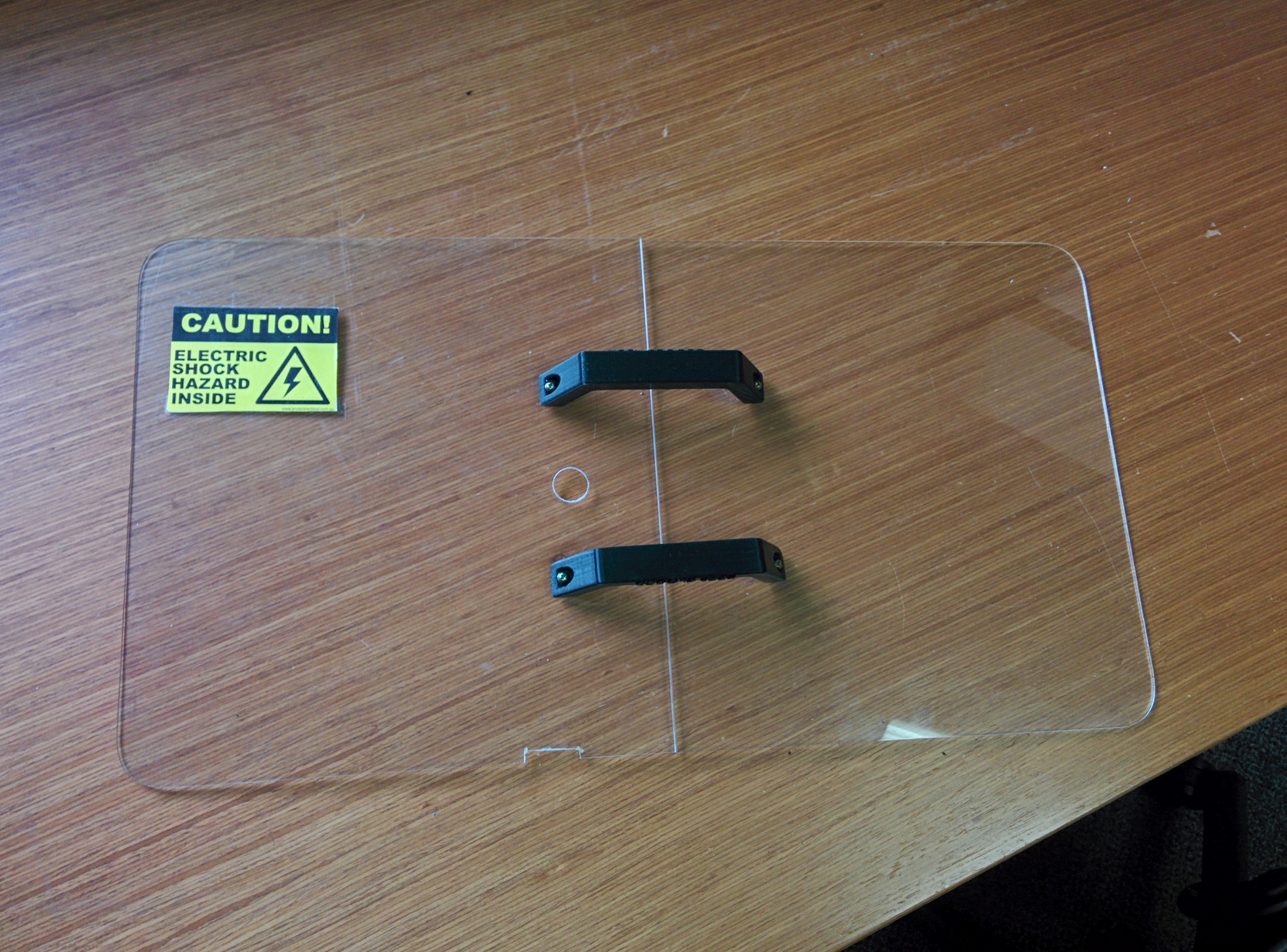

IMG_20150526_112354

Safety lid with warning

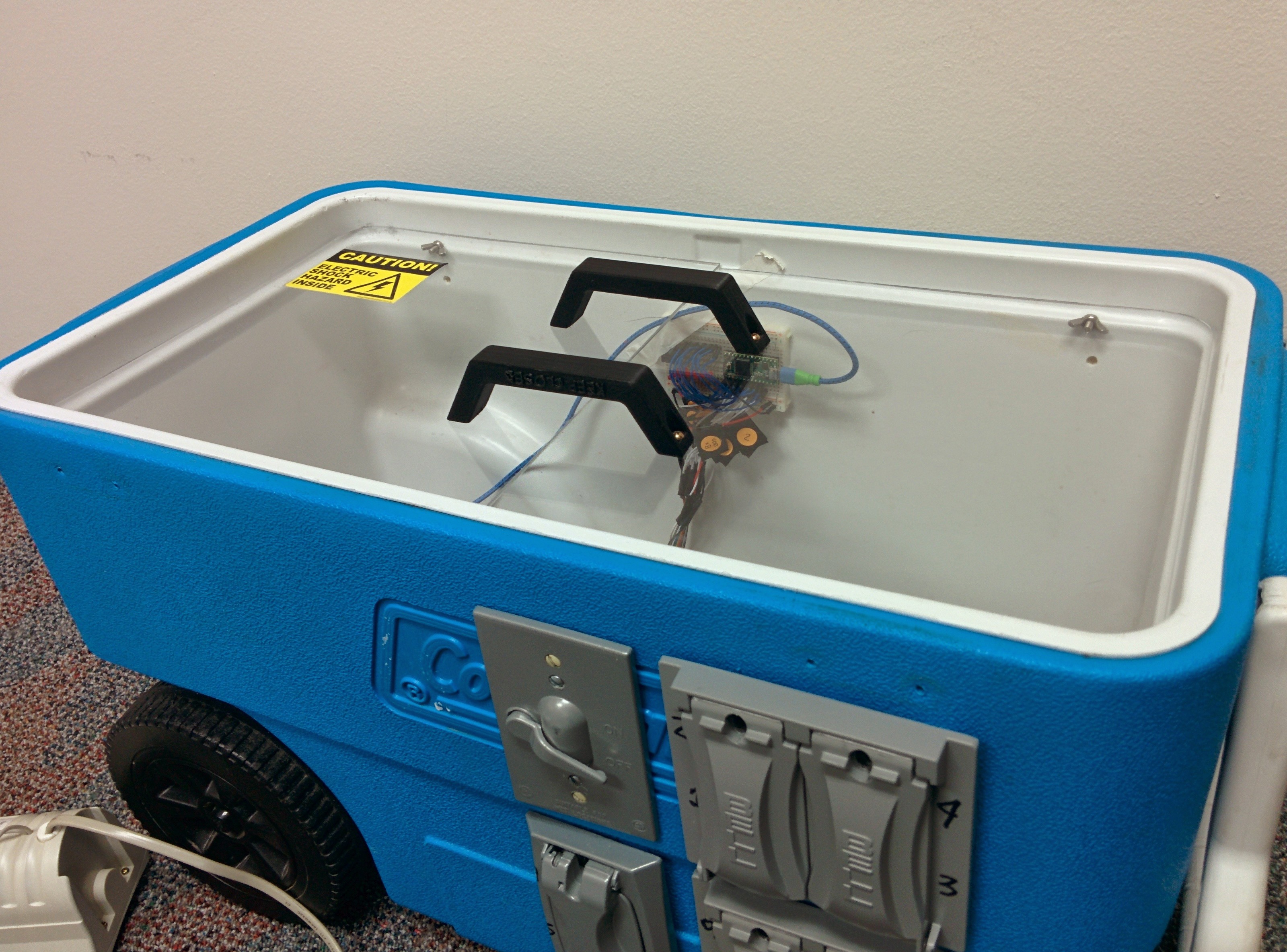

IMG_20150526_112417

Safety lid in place in Cooler.



Now we just needed to hook up the microcontroller to the relays to control the lights, and to the speakers to make sound!

Stay tuned for Part 2 of this article!!











Stop-Go-Walk!

MOOC

Well, I thought I’d let you all know why I’ve been a bit behind on my blog posting.  One of the 2 reasons…

Early March, I decided to take an online MOOC course related to learning embedded microcontroller programming.  That stands for Massive Open Online Course given online by an organization called edX that hosts various online courses given by various brick-and-mortar Universities.   The course I’m taking is called Embedded Systems: Shape the World, UT.6.0.2x, hosted by the University of Texas at Austin, and is the second year of an online version of UT’s EE319K: Intro to Embedded Systems.  The course is taught by Dr. Jonathan Valvano, who has several books on embedded microcontrollers, and Dr. Ramesh Yerraballi, both of whom continue to teach classes at UT Austin in the Electrical and Computer Engineering Department.

I did this to sharpen my embedded microcontroller programming skills, since when I was last in school doing this stuff the internet was still being invented (ok, made generally popular, I’m not THAT old).   Anyway, I thought that this would be a great way to learn something new at night in an inexpensive way.   You can take the courses for free, but you can get verified with edX for a donation (minimum $50) after which you can get course credit if you complete it in the allotted time.

The course uses the Texas Instruments TM4C123G Launchpad Eval kit, which you need to purchase to complete the course, but thankfully is relatively inexpensive at $13.  I decided to go ahead and get the optional hardware for Lab 15 (Nokia 5110 84×48 LCD) and Lab 16 (CC3100 BoosterBack), in case I had time left in the ‘semester’ to do them.

I started the course a bit late so had to play a lot of late-night catch-up.   The course had 16 chapter each of which generally include an online graded quiz and lab.  The labs each have 2 parts:  a simulated-graded portion and a real-board-graded portion.  The only real deadline was that the course would close on May 13, at which point you couldn’t get additional credit for the labs or quizzes.  To get course credit and certification for this particular class, you have to achieve a grade of 50%.

So I made myself a schedule for completing the labs on time that was about 4 days per chapter (vs. a week as suggested by the course profs).  Most of the early chapters went quickly, however as expected the later chapters took longer.    I thought I would document here some of my progress on some of the more interesting stuff I did in the labs.

Lab 10

Lab 10, shown below, is the culmination of Chapter 10 of the edX class, which focuses on learning:

  • Finite State Machines, specifically a Moore FSM, which is a way to describe a system that depends on inputs and determines outputs
  • Using the PLL, which is an accurate system clock with changeable frequency
  • Accurate time delays using the Systick timer

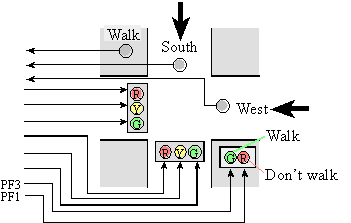

The objective of the lab was to implement a traffic light intersection with cars going either Southward or Westward:

Lab10image001

The control system looks for either a car on the Southward or Westward roads and changes the lights appropriately if a car happens to be present to let it through.   Real roads have inductive loops installed under the road as shown below to detect cars, trucks and sometimes even bikes at an intersection:

220px-Inductance_detectors

The system also has a Walk/Pedestrian sensor which simulates the switch commonly seen on intersections that pedestrians push when they want to cross.   For the purposes of this lab, the traffic light system does not auto-cycle the lights after a certain time as real traffic lights typically do.

As mentioned above, each lab includes a simulated and real-board grader.  What this means is that the provided Lab Starter software includes code that runs to check the inputs/outputs and other various setting on the real board or on a simulated version of the board included in the software.  The simulated board is very handy as it permits debugging software “offline” to validate that it works ok before trying on real hardware.   In the Semiconductor world, we call this simulation-type checking work Design Verification.   The same checking on the real hardware/silicon we call Design Validation.

After quite a bit of work in designing my theoretical traffic light state machine to determine the proper states and inputs and outputs, here is the final result:

https://www.youtube.com/watch?v=_mHofGXF0_o

Incidentally, the is the SECOND traffic light circuit I have built.  The first I did one as a class demo for a prof at Trinity University the summer of 1993 (!), not using a microcontroller but logic gates to implement the state machine.  I actually made a mock-up of a real intersection with real traffic lights.  There were reed switches under the “road” that would be activated by strong magnets in toy cars.    Unfortunately, I don’t have a picture so you’ll have to use your imagination.  Needless to say it was pretty cool too.

In any case, I really am enjoying this online class and highly recommend it!  If you’re interested, check the edX site in the Fall (Sept. 2015) as I believe the professors will give it again!   They have also talked about giving another, more advanced class.

Stay tuned for more edX UT.6.0.2x Lab completion videos!
